GIMA-CARE TENS/EMS - 2 channels - 60 programmes
|
|
| 28405 | |
| 1 pc | |
| 1 | |
| Medical device | |
| II A |
| No | |
| No |
| 2986637 | |
| Z12062899 | |
| 8023279284058 | |
| 986873457 | |
Operator Manual
Box/Label
CE Certificate + extension letter
Declaration of conformity
ISO 9001/13485 Certificates

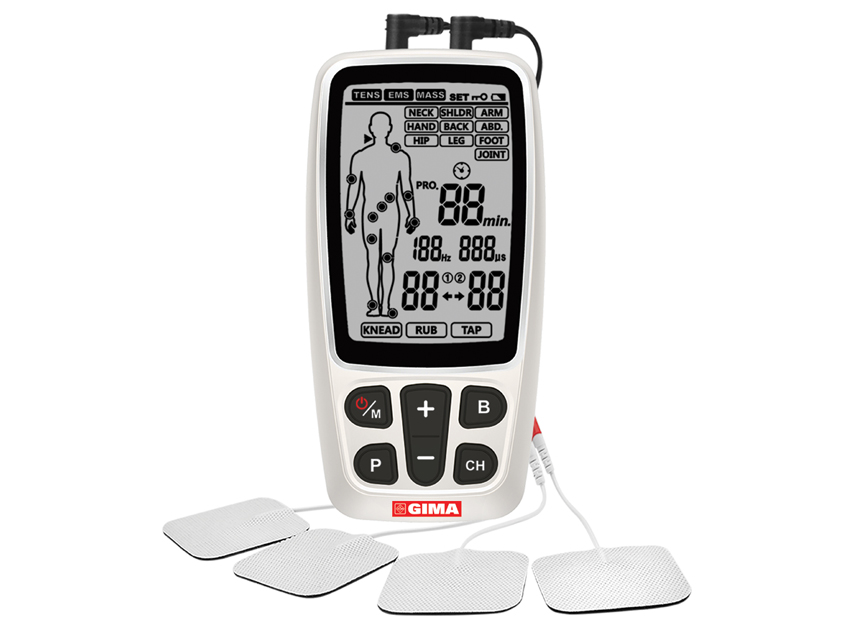

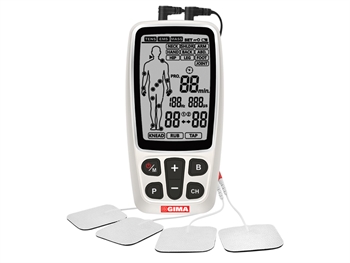

GIMA-CARE TENS - 60 medical programmes
Dual channel multi-functional electrotherapeutic device generates electric stimulation to help easing aches and pain, muscle training and relaxation.
Easy to use, Gima-care has 2 pre-set treatment programmes with adjustable treatment time and 1 custom programme for each body part, allowing the user to adjust treatment time and pulse rate and width.
- 3 in 1 Tens + Ems + Massage
- professional tens waveform (variable pulse frequency and width)
- body part illustration
- 60 programmes (10 body parts, 40 levels)
- powerful output (max. 120 mA) (at 500 ohm load)
- solid and clear design
Continuous operation for around 10 treatments if fully charged.
Supplied with 4 pads 50x50 mm, 2 output cables, 1 USB cable.
User manual (GB, FR, IT, ES, DE).
60 programmes - TENS/EMS/MASSAGE:
TENS (Transcutaneous Electrical Nerve Stimulation)
Body parts: neck, shoulder, arm, hand, back, abd, hip, leg, foot, joint
Treating programme: 30 programmes, 10 adjustable programmes
EMS (Electrical Muscle Stimulation)
Body parts: neck, shoulder, arm, hand, back, abd, hip, leg, foot
Treating programme: 27 programmes, 9 adjustable programmes
MASSAGE
Methods: knead, rub, tap
Treating programme: 3 massage manipulations to all body parts
TECHNICAL SPECIFICATIONS:
Channel: 2
Waveform: Bi-phase square-wave pulse
Output current: Max. 120 mA (at 500 ohm load)
Output intensity: 0 to 40 levels, adjustable
Power supply: 3.7 V Li-ion rechargeable batteries
Display: backlight white display
Dimension - Weight: 109x54.4x23 mm - 85g
Classification: BF type applied part, internal power equipment, IP22
Norms: IEC60601, IEC61000-4-2, IEC61000-4-4, IEC61000-4-5, IEC61000-4-11, IEC61000-4-8, IEC61000-4-3
