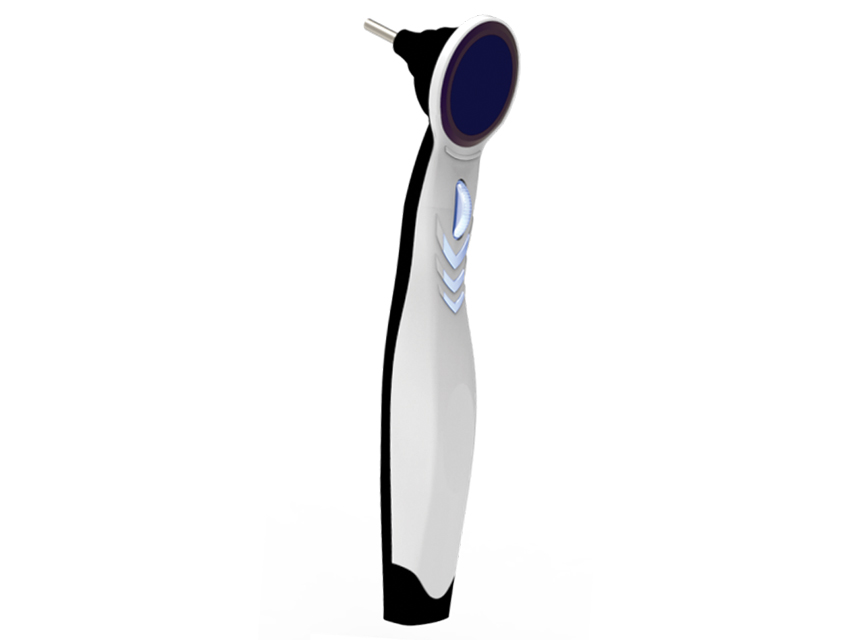

SMART VIDEO OTOSCOPE
Lightweight and portable video otoscope, designed fo the direct examination of the auditory canal and tympanic membrane.
Professional optical lens providing a clear image with minimal distortion.
Built-in 1.28” display for real-time image viewing.
The control wheel is used to capture images, record videos and adjust the light source brightness through ten selectable levels.
Dedicated PC software allows to manage photos and videos, share them with other people, synchronize data and adjust brightness settings.
- 8 hours of working time
- Wi-Fi connection for mobile App Ear Mirror
- cool white LED light source for excellent illumination
- automatic white balance
- screw-in ear speculum for quick and easy replacement
Supplied with 8 autoclavable ear speculum tips (size 4 and 5 mm), PC software, type-C USB cable and multilingual manual and box: GB, FR, IT, ES, PT, DE, NL, DK, SE, NO, FI, LT, LV, EE, PL, CZ, SK, HU, SI, HR, RO, BG, GR, Arabic.
Control wheel
-scroll up to adjust display brightness up to 10 settings
-scroll down to adjust camera light brightnessup to 10 settings
-when connected to PC the control wheel is used to zoom in or out the image
-long press: 5 seconds to turn on/off
-short press: snap
Light indicator
Blue light: charging Green light: Wi-Fi connected White light: in use or fully charged
Type-C port and computer connection port
Light sources: LED
Depth of field: 15~25mm
Field of view: 100° (Sensor diagonal field of view)
Lens: 0.3 Megapixel HD lens
Min. illumination: 1.0 lux
Illuminance of source: max. 500 lux (30 mm distance)
Image resolution: 720×480p
Image format: JPGE, BMP
Frame rate: max 30fps
Display: 1.28’’ round TFT colour display, 10 levels of brightness
Power supply: 2000mAh battery
Input: 5.0Vdc from USB port
Safety: Type B applied part Class II, IP65
