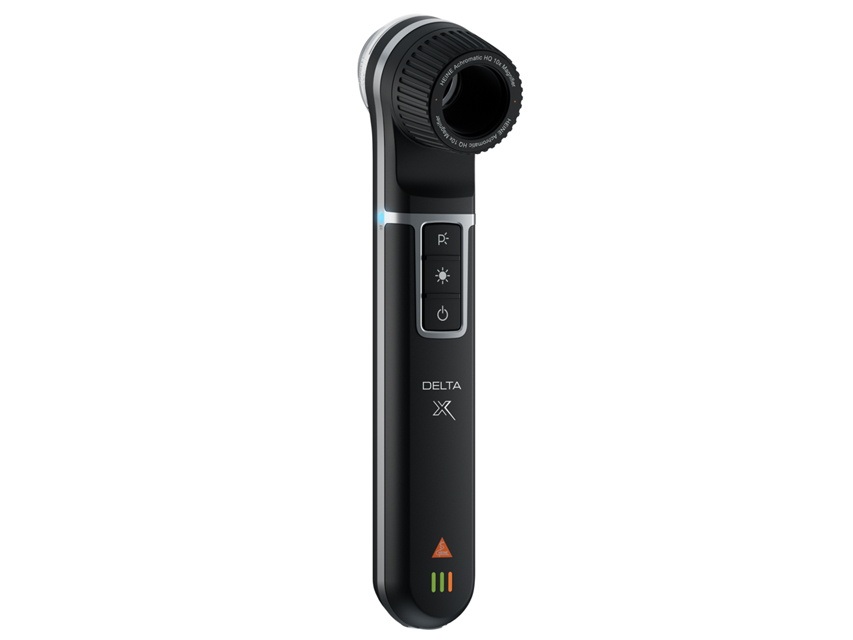

HEINE DELTA X DERMATOSCOPE - K-130.28.330
The HEINE Delta X offers an incredibly versatile solution for practitioners: its small instrument head and proven contact plate design make it exceptionally easy to examine hard-to-reach areas, while the angled handle ensures comfortable, ergonomic handling.
LEDHQ technology ensures an accurate diagnosis throughq bright, homogeneous illumination and true colour rendering, while the polarisation filter eliminates reflections and glare.
- 10x magnification
- extremely sharp image with the achromatic HEINE optical system
- brand-new contact plates made of optical polymer for both multi or single-use in hygienically critical applications
- toggle function: switch between polarised and non-polarised light with a button
- transition from contact to non-contact examination by removing the contact plate
- field of view Ø 14mm (lens 16mm)
- focusing optics (dioptre correction)
- solid integrated aluminium frame
- connection to free HEINE DERM App
The housing is thermo-moulded from a high-impact material blend, featuring a smoothSURFACE design. Supplied with rechargeable battery, E4-USBC power supply, 3x Delta X CPP contact plates and hard case.
Diopter: ±3D
Colour rendering index (CRI): 92
Colour temp: 5.700 K
Working distance: 10 mm from ocular ring
LED life: > 50.000 h
Power supply: Li-ion Cell internal battery
Input: USB-C: 5 V DC, 500 mA
Charging time: 160 min
Size - weight: 175x45xh 35 mm - 130 g
