MIC Wi-Fi & USB CAPILLAROSCOPE
|
|
| 32183 | |
| 1 pc | |
| 1 | |
| Medical device | |
| I |
| 2184083 | |
| Z12040108 | |
| 8023279321838 | |
Operator Manual
Declaration of conformity
ISO 9001/13485 Certificates

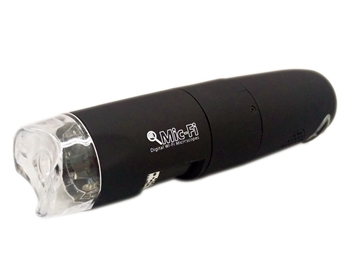

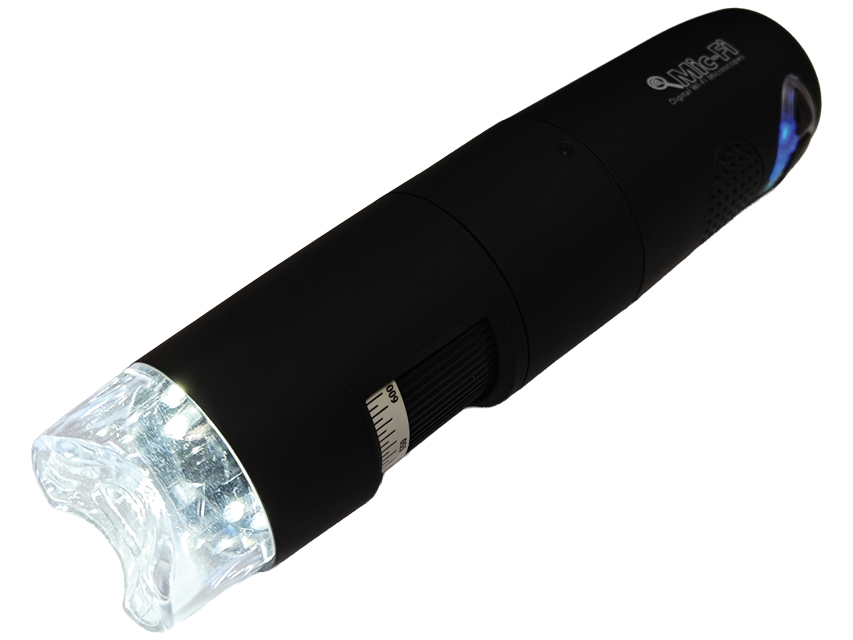

Wi-Fi CAPILLAROSCOPE
An innovative line of handheld colour digital microscopes: dermatoscope with polarized filter, capillaroscope and iridoscope with Wi-Fi wireless transmission. Small, easy to operate, light and portable. They can be used with all the most popular smartphones, tablet and PC. Basic software for acquisition of photos and videos. Google/Apple applications included.
CAPILLAROSCOPE SPECIFICATIONS
Magnification: 500X to 600X
Light source: 8 adjustable white LED
Lens: High definition microscopy lens
ùOperation system Windows (7, 10, 11), OS X, iOS, Android (it can be used by Wi-Fi or USB)
Photo and video resolution 1.3 MPixels - 1280x1024 (MJPG), 640x480 (MJPG), 320x240
Frame rate 15 fps 1,280x1,024, 30 fps 640x480 320x240
Wi-Fi wireless transmission distance Up to 5 m
Power consumption Max 2.5 W
Li-ion battery Continuous working time - appx. 2 hours, full charging time - appx. 2 hours
Power source - Size - Weight DC 5.0V / 1A - Ø 36x142 mm - 88 g
CAMERA
Camera sensor CMOS 1/4"
Optical features Exposure: Auto, Gamma: Auto, White balance: Auto, Black reference: Auto
Caps of contact
USB AC adapter
USB cable
Quick manual
Plastic stand
Line calibration ruler
Manual (GB, FR, IT, ES, DE)
CD basic software Win (GB, FR, IT, ES, DE, UA, JP), Mac (GB)
