Wi-Fi & USB VIDEOTOSCOPE with software
|
|
| 32180 | |
| 1 pc | |
| 1 | |
| Medical device | |
| I |
| 2183410 | |
| Z12021009 | |
| 8023279321807 | |
Operator Manual
Declaration of conformity
ISO 9001/13485 Certificates

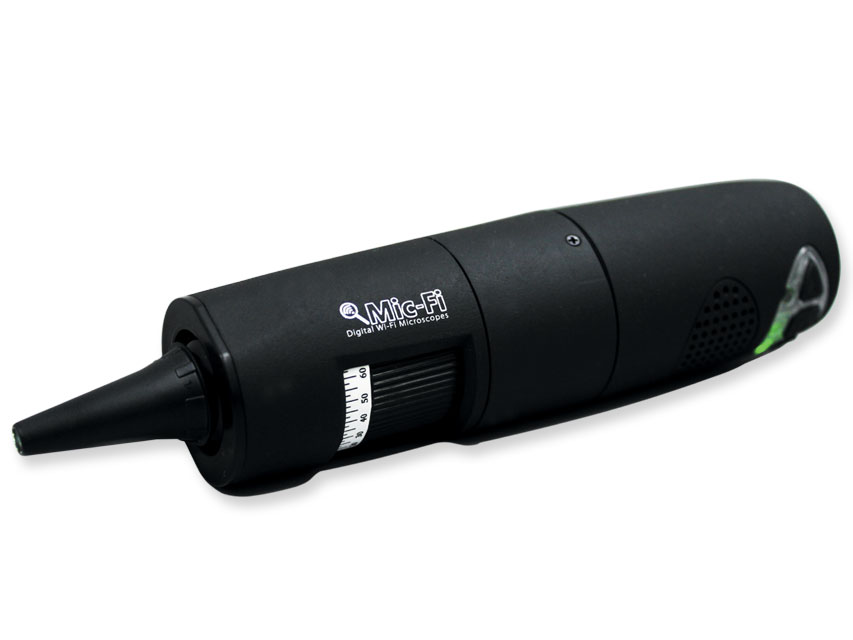

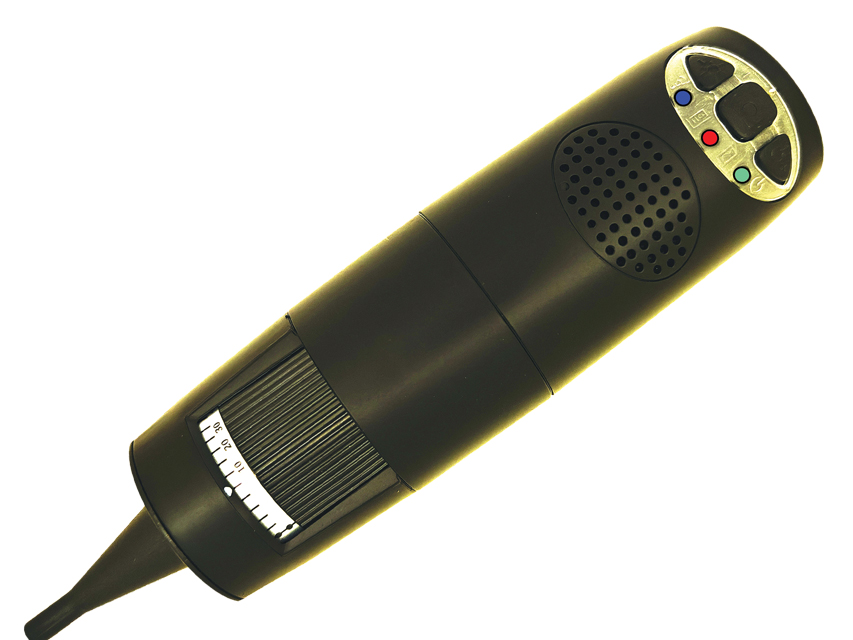

Wi-Fi & USB VIDEOTOSCOPE with software
Innovative, handheld colour digital Otoscope with Wi-Fi wireless transmission. Small, easy to operate, light and portable. It can be used with all the most popular smartphones, tablets and even with PC.
Operation system: Windows (7, 10, 11), Mac (OS X 10.7 and following), iOS, Android
Photo and video resolution: 1.3 MPixels - 1280x1024 (MJPG), 640x480 (MJPG), 320x240
Frame rate: 15 fps 1280x1024, 30 fps 640x480 320x240
Wi-Fi wireless transmission distance: up to 5 m
Power consumption: max 2.5 W
Li-ion battery: continuous working time - approx. 2 hours, full charging time - approx. 2 hours
Power source: DC 5.0 V / 1A
Size: Ø 36x142 mm
Weight: 88 g
Camera
Camera sensor: CMOS 1/4"
Optical features: Exposure: Auto, White balance: Auto, Gamma: Auto, Black reference: Auto
Otoscope
Magnification: 20 X
Focus range: 8-60 mm
Object distance: 1-160 mm
Light source: 4 adjustable white LED
Lens: high definition microscopy lens
Software interface: Mic-Fi Apps for Android and iOS system and Mic-Fi softwares for PC and MAC
9 disposable speculum (3x3.5, 3x4.3, 3x5.0 mm)
Plastic stand
USB AC adapter and cable
Manual (GB, FR, IT, ES, DE)
CD basic software Win (GB, FR, IT, ES, DE , UA, JP) Mac (GB)
