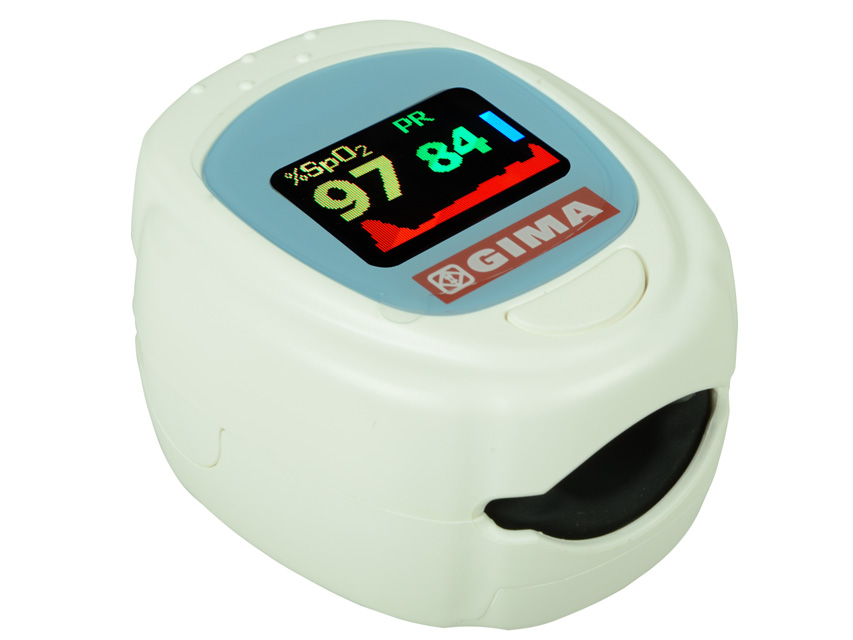

OXY-PEDIATRIC COLOUR FINGER OXIMETER
(Sold up to the end of stock)
| 34266 | |
| 1 pc | |
| 1 | |
| Medical device | |
| II A |
| No | |
| Yes |
| 1844261 | |
| Z1203020408 | |
| 8023279342666 | |
| 45607 | |
| 972598332 | |
Download Area
Operator Manual
Box/Label
Technical Sheet/Test Report
CE Certificate + extension letter
Declaration of conformity
ISO 9001/13485 Certificates
Similar to OXY-6 but suitable for pediatric use.
Input shaped to fit children's fingers thickness 8-16 mm.
Supplied with two rechargeable batteries and USB battery charger.
• Pulse rate
- Range: 30-240 bpm
- Accuracy: ± 2 bpm (2%)
- Resolution:1bpm
• SpO2
- Range: 35%-99%
- Accuracy:
- ±2% (75-99%)
- ±3% (50-75%)
- Resolution: 1%
• Perfusion index
- Range: 0-20%
- Accuracy:
- ±0.1% (0.2-2%)
- ±0.2% (2-10%)
- Resolution: 0.1%
• Alarm: SpO2: low limit 90%
• Pulse rate: low: < 50 bpm - high > 120 bpm
• Power: 3.6V rechargeable batteries
• Norms: IEC 60601-1-2 Class II
