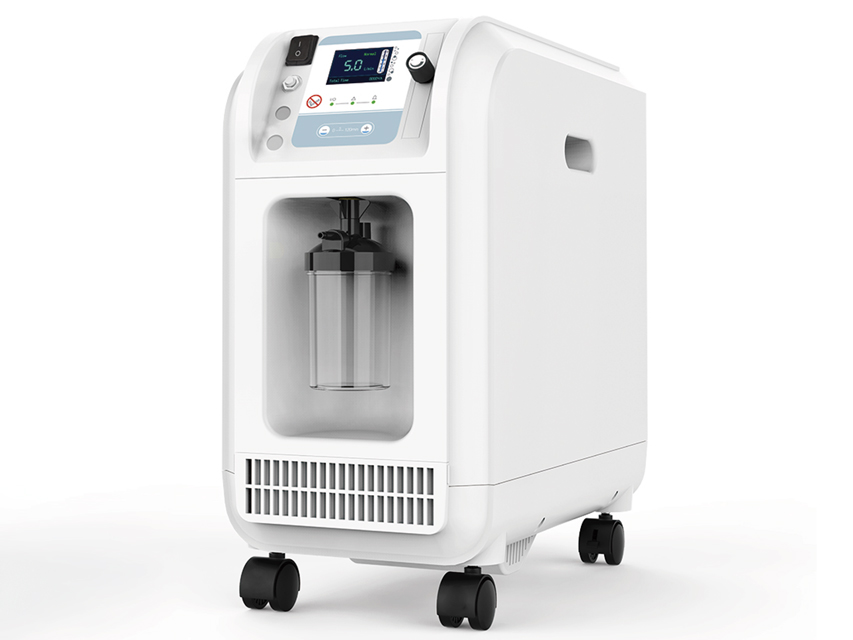

OXYGEN CONCENTRATOR 5 L
|
|
| 34582 | |
| 1 pc | |
| 1 | |
| Medical device | |
| II A |
| 2969580 | |
| Z12159004 | |
| 6945040108245 | |
| 950975906 | |
Operator Manual
CE Certificate + extension letter
Declaration of conformity
ISO 9001/13485 Certificates
Small and portable oxygen concentrator composed of air compressor, absorption tower of molecular sieve, sensor and flowrate controller.
The machine adopts PSA (pressure swing absorbers) method to directly concentrate medical oxygen with high concentrator from the air. Lightweight, easy to use and safe.
Stable performance and low noise level.
Wide application in clinic, hospital, oxygen bar, gym center…
Supplied with humidifier bottle, power cord, nasal cannula and user manual (GB, FR*, IT, ES*, DE*) * only on www.gimaitaly.com
Size: 508x260x h 530 mm.
Weight: 21 kg
Max. flowrate: 5l/min
Flow range: 0.5~5l/min
Oxygen concentration: 93% ±3%
Output pressure: 20kPa~50kPa
Input power: 450VA
Noise level: =55dB(A)
Operating voltage: AC220V ± 10%, 50Hz ±1 Hz
Type of protection: Class II, Type BF, IP21
