MEDIONE TRQ-2024 AUTOMATIC TOURNIQUET - 4 channels
|
|
| 33110 | |
| 1 pc | |
| 1 | |
| Medical device | |
| II A |
| 2789673 | |
| Z12139006 | |
| 8682754922245 | |
| 14074 | |
Operator Manual
Box/Label
CE Certificate + extension letter
Declaration of conformity

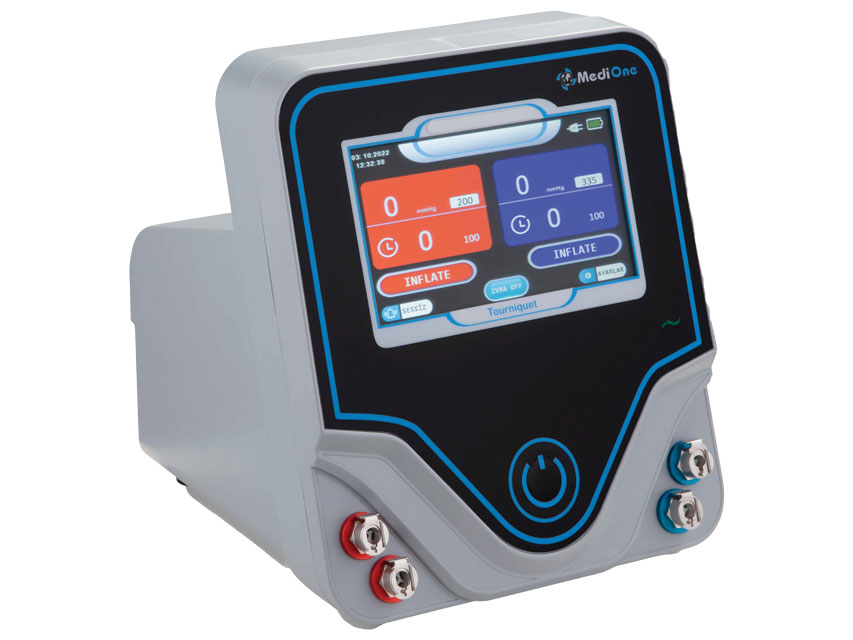

TRQ-2024 AUTOMATIC TOURNIQUET - 4 CHANNELS
Tourniquets used to temporarily stop or slow the blood flow in the patient's upper and lower extremities during surgical procedures. In addition, in the application of Regional Intravenous Anesthesia (IVRA), it prevents blood flow to that area after the blood of the extremity is drained. Designed for continuous use in adults and children. Adjustable pressure range is from 20 to 650 mmHg. Tourniquets have 4 connection sockets to use two cuffs. IVRA can be applied with a double cuff. Medical Device Class IIa.
Features:
• Automatic leakage test and system test
• Possibility to use 2 double or 4 single cuffs at the same time
• Safety, visual & audio alarm system
• 7-inch LCD touch screen
• Microprocessor Controlled
• Adjustable application time, pressure range and timing alarm
• Built-in rechargeable lithium-ion battery capacity 20 hours
• 4 tourniquet cuffs included
• Carrying handle
INTENDED USE OF TOURNIQUET SYSTEM
• Leg - arm fractures
• Mallet Finger therapy
• Arthroscopic Surgery
• Hammer toe
• Carpal Tunnel Syndrome
• Amputations
• Leg and arm implant insertion and removal
• Varicose vein
• Tendon correction
• Tumor excisions
• Finger, wrist, knee, elbow joint prosthesis
• Cyst excisions
• Implant insertion and removal for upper/lower extremities
Cuff pressure range: 20 - 650 mmHg ± 5 mmHg
Time range: 2-240 minutes ± 1 minute
Nominal compressor value: 12 V, mask. 1.5 bar
7’’ Touch Screen LCD 800x480 pixel
Operating voltage: 100-240 V / 50-60 Hz 0.3A Max
Rechargeable battery: Lithium battery, 14.4 V, 5.8Ah activates in case of power failure
Size - Weight: 235x268xh 275 mm; 3.65 kg
Protection: type BF, Class I, IP20
1 reusable single cuff 12" - 30.5x7.6 cm - baby leg/child arm
1 reusable single cuff 18" - 45.7x10.2 cm - child leg/adult arm
1 reusable single cuff 30" - 76.2x12.7 cm - adult
1 reusable IVRA double cuff 20" - 50.8x15.2 cm - adult
2 blue patient connecting tubes - 3 m
2 red patient connecting tubes - 4 m
User manual GB, FR, IT, ES. TR available on gimaitaly.com
Power cable
