MULTIPOSITION AUTO STRETCHER-WHEELCHAIR

  • 7
34057
1 pc
1
Medical device
I
No
No
2233133
V0899
8023279340570
Download Area
Operator Manual
Operator Manual
Box/Label
Box/Label
Declaration of conformity
Declaration of conformity
ISO 9001/13485 Certificates
ISO 9001/13485 Certificates

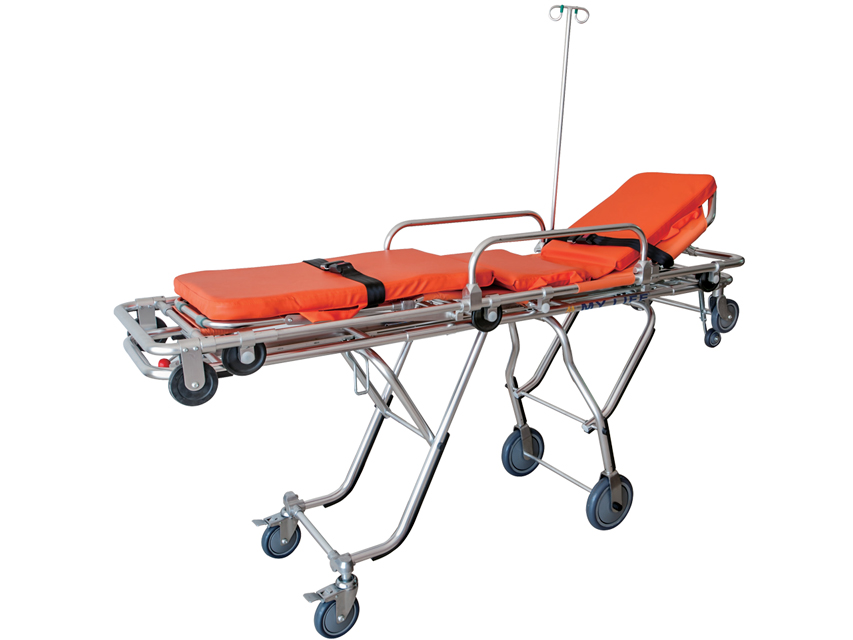

MULTIPOSITION AUTO STRETCHER - wheelchair

Unique design multifunctional automatic stretcher, easily adjustable at different positions for emergency treatment, also in difficult situations. Front and back fixation to lock the stretcher into the ambulance at a desired position. The upper part can become a wheelchair. The stretcher can be adjusted to 6 levels, fold back and forth according to practical needs. When bent forward, the back of the stretcher is supported by fixed pneumatic springs with strapless controlling up to 60 degrees angle. Mattress, belts, side rails, I.V. stand and fixing device are included.

Maximum size (LxWxH): 198x56x89 cm
Minimum size (LxWxH): 198x56x33 cm
Packing size: 199x58x35 cm
Load: 159 kg
Net weight, Gross weight: 40 kg, 46 kg
Maximum angle of leaning forwards backwards: 0-90 degrees
The height scope of touching down (4 grades): 93 cm - 82 cm - 70 cm - 35 cm
