4 JOINTS VARIABLE HEIGHT PATIENT BED - 3 cranks - castors
|
|
| 44742 | |
| 1 pc | |
| 1 | |
| Medical device | |
| I |
| No | |
| No |
| 2321126 | |
| V080699 | |
| 8023279447422 | |
Operator Manual
Box/Label
Declaration of conformity
ISO 9001/13485 Certificates

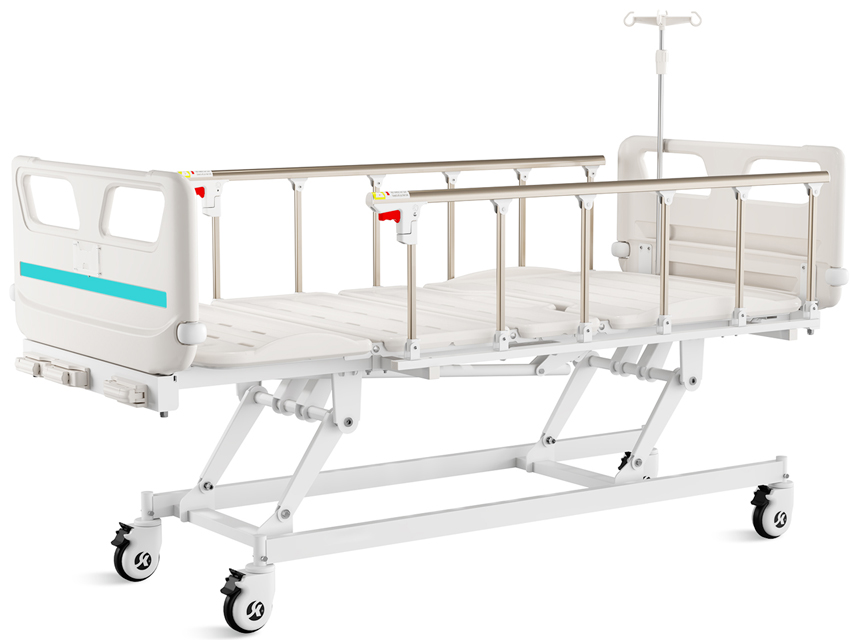

4 JOINTS PATIENT BED - 3 cranks - variable height - castors
Manual patient beds with 4 joints adjustable by means of 3 cranks.
PP head and foot board equipped with bumpers wheel Ø 65 mm, preventing collision.
PP bed platform, divided in 4 sections with integrated mattress retainer.
Plastic parts and epoxy painting.
Guardrail
Aluminium alloy side rail, 6 staff, collapsed type with safe lock
Castors
4 Ø 12.7 cm castors
Mattress retainer
Platform integrated mattress retainer on both sides (back and leg section), with a boarder of 33 mm high
IV Pole
Stainless steel IV pole, bearing 15 kg
Size: 2130x995 mm
Height: adjustable 420-730 mm
Mattress platform: 1925x900 mm
Max. patient load: 200 kg
Movement: 3 cranks
Back-rest adjustment: 0-70° (± 5°)
Knee-rest adjustment: 0-38° (± 5°)
2 foldable side rails
IV pole 4 hooks
4 IV pole provisions
2 drainage hooks
