HEIGHT ADJUSTABLE ELECTRIC BED - compass rail - load 230 kg
| 44799 | |
| 1 pc | |
| 1 | |
| Medical device | |
| I |
| 2392251 | |
| V08060101 | |
| 8023279447996 | |

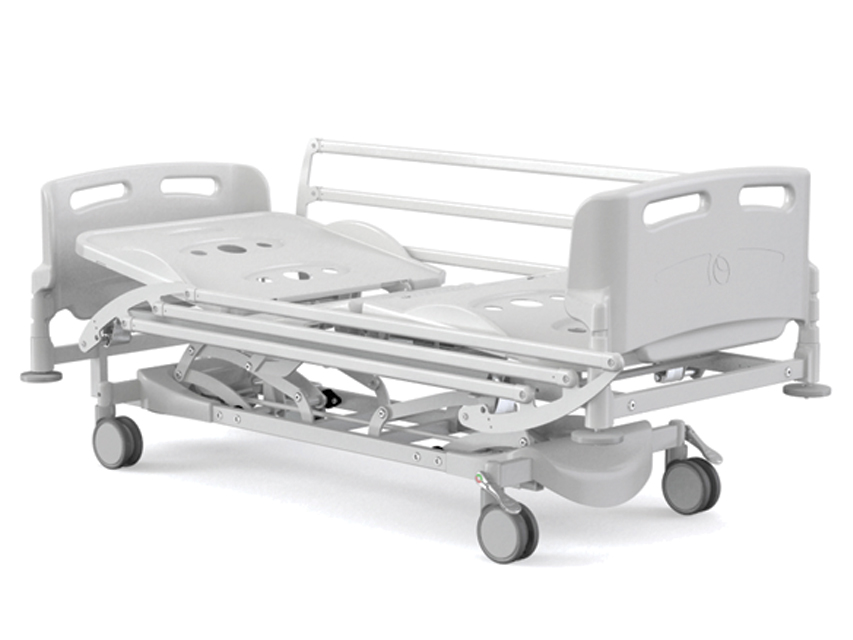

HEIGHT ADJUSTABLE ELECTRIC BED - compass rail
3 joint, 4 section Hospital bed, with electronic adjustment of height and platform, Trendelenburg and Reverse Trendelenburg positions (15°).
All steel components are epoxy-coated.
Back section regulation using electric actuators with anticrushing and rototranslation function to avoid abdominal crushing.
Both bed sides have CPR manual levers for emergency manoeuvres.
Foot rest adjustment by click mechanisms allowing 6 positions.
Remote control to maintain position or disable.
The keypad allows adjustment of backrest, bed surface height, legs and foot rest, comfort position, TR and RTR
Made in Italy.
Bed weight: 140 kg
Size: 110x225xh 91 cm
4 castors Ø 150 mm with central brake system with directional control
Compartments for patient lift bar and IV probe
Minimum/maximum height surface: 380-780 mm
Maximum backrest regulation: 71°
Maximum leg/foot height regulation: 30°
Trendelenburg/reverse trendelenburg: 15°
Minimum/maximum height: 835-1245 mm
Maximum total width/length: 1010/2260 mm (bumpers and siderails included)
Worksurface width/length dimension 880/2000 mm
Power supply: 160-230 V - 50-60 Hz
SWL: 270 kg
IEC protection class: I / B
IP code (protection rating): IP66
