ELECTRIC OPERATING TABLE WITH TR AND RTR
|
|
| 44775 | |
| 1 pc | |
| 1 | |
| Medical device | |
| I |
| No | |
| No |
| 2549042 | |
| Z12011202 | |
| 8023279447750 | |
Operator Manual
Box/Label
Declaration of conformity
ISO 9001/13485 Certificates

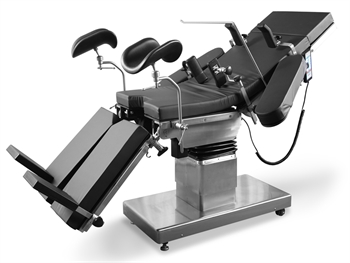

ELECTRIC OPERATING TABLE with TR and RTR
Electric operating table for general surgical procedures, mainly made of 304 stainless steel.
It is driven by low-voltage DC motor with safe and stable performance.
Table movements can be controlled by means of an easy-to-use hand controller.
Super wide table top, super long sliding distance.
Leg rest with integrated gas spring for easy control.
Suitable for X-ray and C-arm surgery thanks to an extra-long horizontal sliding.
Max. load: 200 kg
Head and leg rest
Detachable double head and leg rest for surgical needs
Hand controller
All functions can be controlled by hand controller and can be locked
Kidney bridge
Built-in kidney bridge
Five section table top
Head, back, shoulder hip and leg section, each section with X-ray cassette layer to allow X-ray use
Size: 210x50xh 80-100 cm
Max. load: 200 kg
Trendelenburg: 0-25°
Reverse Trendelenburg: 0-22°
Lateral tilt (left/right): 0-20°
Head rest (up/down): 0-45°/0-90°
Back plate (up/down): 0-75°/0-20°
Foot plate (up/down): 0-15°/0-90°
Foot plate horizontal positioning: 0-90°
Horizontal sliding: 30 cm
Kidney bridge elevation: 11 cm
Voltage: 110-220 V, 50/60 Hz
Power capacity: 1.0 Kw
Mattress
1 anesthesia screen frame
2 shoulder holders with cushion
2 arm holders with cushion
2 leg supports with cushion
2 foot supports with cushion
1 kidney bridge handle
1 IV stand
