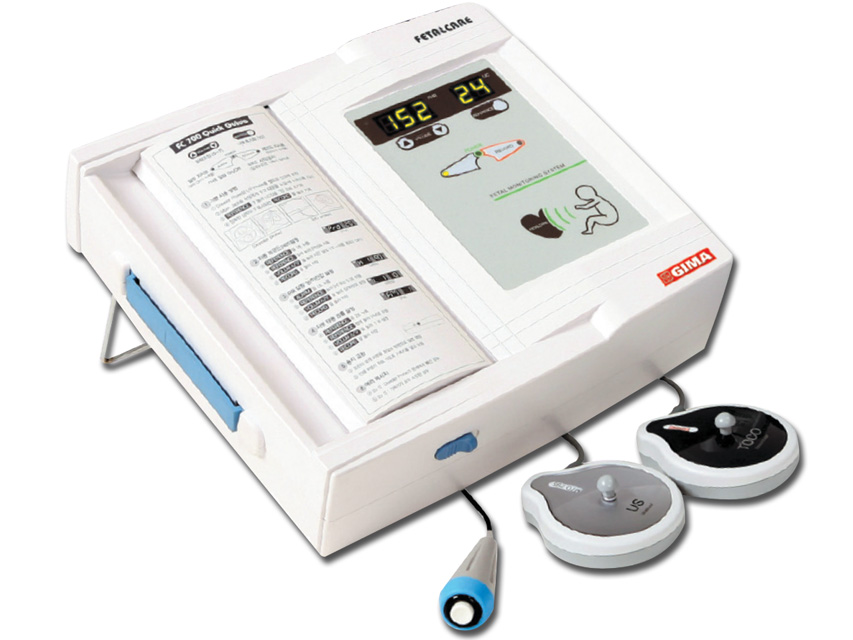

GIMA FC 700 FOETAL MONITOR
(Sold out)
|
|
| 29520 | |
| 1 pc | |
| 1 | |
| Medical device | |
| II B |
| No |
| 213420 | |
| Z12080103 | |
| 8023279295207 | |
| 12610 | |
| 903141430 | |
Operator Manual
CE Certificate + extension letter
Declaration of conformity
Technical Sheet/Test Report
ISO 9001/13485 Certificates
Cost-effective single foetal monitor
Extreme ultrasound doppler sensitivity:
- high-accuracy with 1 Mhz frequency
- automatic/manual Foetal Movement detection
- auto NST (Non-stress test) function from 10 min. to 1 hour
Data printout
- CTG analysis printing
- A4 size chart paper with perforation line
- plain thermal fax paper usable
- print speed 1, 2, 3 cm/min
Easy-to-use
- one- touch operation and easy setup
- alarm function (FHR high-low)
- s/w upgrade via internet
Dimensions 296x92.5xh 305.5 - approx. 2.9 kg
Display 7 segment LED - 2 channels (FHR, UC)
Thermal printer print speed: 1, 2, 3 cm/min / paper feeding function
Power adaptor input: 100-240 VAC, 50-60 Hz, 1.2 A / output: 18 VDC, 2.5 A
External link RS-232C
Foetal heart rate
input signal: ultrasound pulsed doppler
ultrasound frequency: 1.0 Mhz
ultrasound power: <10 mW/cm2
FHR detection method: auto correlation
FHR range: 50-240 bpm ±1 bpm (120-160)
Uterine contraction
reference (zero) control: one touch switch
measurement range: 0-99 units
Foetal movement measurement detection source: ultrasound pulsed doppler
Auto CTG analysis
average baseline FHR
number of UC
number of acceleration
number of deceleration (late, early, variable)
Tachycardia (moderate, severe)
Bradychardia (moderate, severe)
