ALLTION LED COLPOSCOPE - 3.75X, 7X, 15X > 28,000 Lux
|
|
| 29613 | |
| 1 pc | |
| 1 | |
| Medical device | |
| I |
| No | |
| No |
| 1709597 | |
| Z12020703 | |
| 8023279296136 | |
Operator Manual
Box/Label
Certificates
Declaration of conformity
ISO 9001/13485 Certificates

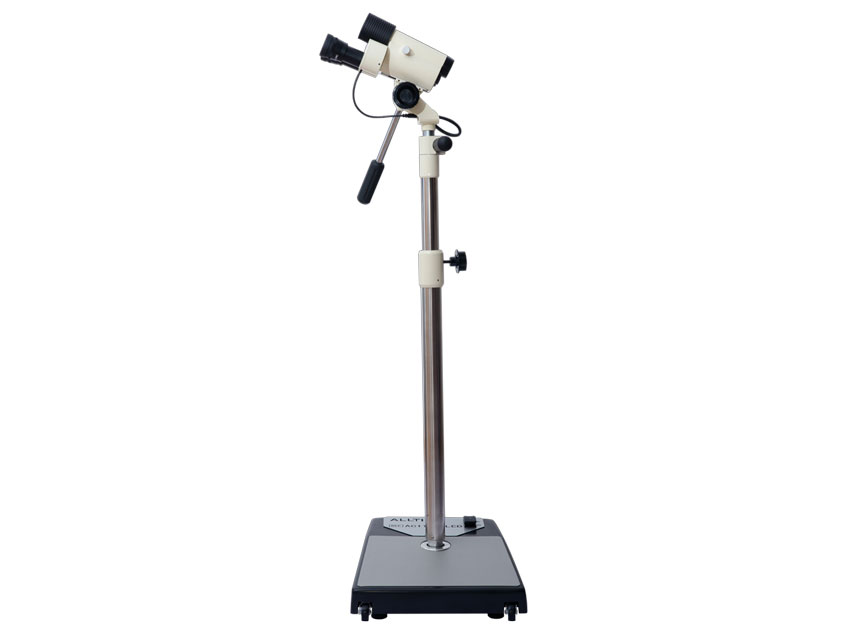

ALLTION LED COLpoSCOPE 3,75x, 7x, 15x - > 25,000 LUX
High quality and complete colposcopes, with excellent optics and cold, longlife white light. Compact, lightweight and easy to use offers superior quality at a competitive price. A special universal Teflon® ball joint gives user 360° easy motion for gross focus. Comes assembled, ready for use.
Manual: GB, FR, IT, ES.
Magnification 3,75x, 7x, 15x
Focus length: 300 mm
Field of view: 9.5/18.5/38 mm
Depth of field: 5/8/34 mm
Light intensity: > 25,000 lux
Interchangeable adjustable eyepiece 12.5x
Illumination: longlife 3.3V / 10W LED
Superior optics with individually adjustable eyepiece
Built-in rheostat for brightness adjustment
Easily changeable, LED bulb
User-selectable built-in green filter
Two (gross/fine) focus adjustment handles
Two (gross/fine) height adjustment handles (838-1194 mm)
Smooth action control
Power supply: A C 100-240 V - 50/60 Hz; DC 12V 3A
