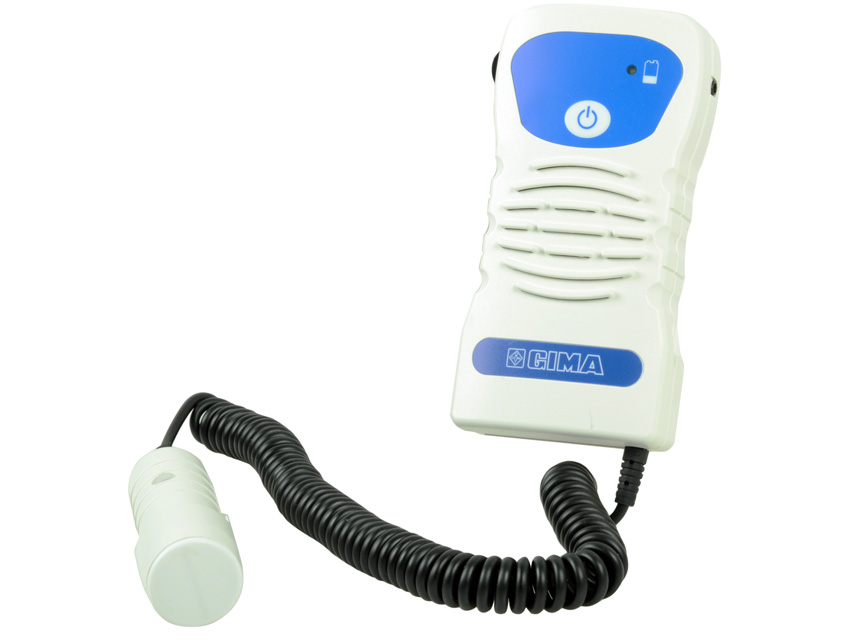

GIMA FOETAL DOPPLER G2002

Small, lightweight, high sensitivity pocket Doppler, with 2 MHz foetal probe, ideal for General Practitioner's or Midwife's use for routine antenatal foetal detection. Pocket Doppler can be used to detect the beating foetal heart from about 10th week of gestation. It may be used to locate the position of the placenta, thus aiding in the early diagnosis of placenta praevia, to survey blood flow of the umbilical cord and to diagnose multiple pregnancies. Foetal signals are easily located using the lightweight narrow beam transducer while internal signal processing minimizes noise artefacts. Audio foetal heart signals are available to the user via the built-in loudspeaker or option headset, with output level controlled by rotary volume control.

All units are supplied in a nice bag with a tube of coupling gel and user manual in GB, FR, IT, ES, PT, DE, GR.

Battery not included.

Made in the UK.

Ultrasound Frequency:
2 MHz continuous wave
Transducer: 2 crystal narrow beam
Output power: <10mW/mm2 SATA
Audio Response 300Hz -1 KHz

FHR (Fetal heart rate): 60-210 bpm resolution ± 1 bpm, accuracy ± 2 bpm

Unit Controls Keys: 1 Key (for unit on/off)
Controls: rotary volume

Indicators: Battery low icon

Power supply Battery 9 V Alkaline Manganese
Expected battery life: 8 hours

Output Headset:
Audio output to optional headset - jack 35 mm

Material: ABS / Noryl
Size: 150 mm by 75 mm Weight: 295 g (with transducer)
Classification: Class I Type B - IEC 60601-I 0120

In the same family are available
