GIMASONIC POCKET DOPPLER WITH COLOUR DISPLAY without probe
|
|
| 29480 | |
| 1 pc | |
| 1 | |
| Medical device | |
| II A |
| 2681945 | |
| Z12080103 | |
| 8023279294804 | |
| 11696 | |
Operator Manual
Box/Label
Certificates
CE Certificate + extension letter
Declaration of conformity
ISO 9001/13485 Certificates

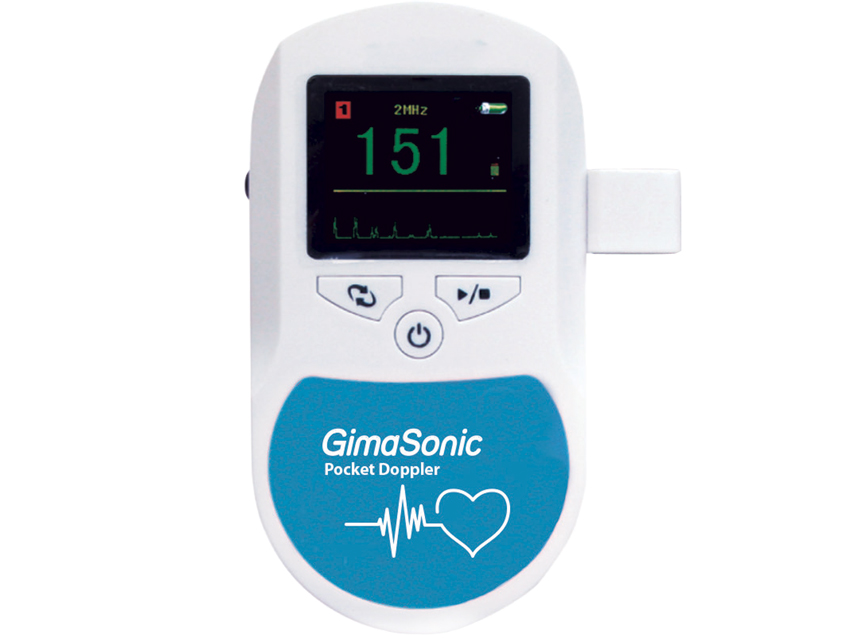

COLOUR SCREEN POCKET DOPPLER
GIMASONIC Colour screen doppler - without probe
- built-in speaker
- TFT-LCD, real-time display of FHR
- three working modes: real-time FHR, average FHR and manual calculation
- display of FHR, bar graph and heartbeat waveform, red alarm for abnormal FHR
- low power consumption, continuously work for more than 8 hours with two "AA" batteries
- indication for probe-off and low battery
- range of probes for foetal or vascular use: 2, 3, 8 MHz probe
Suitable for use after the 12th week of pregnancy
Multilingual box and manual: GB, FR, IT, ES, PT, DE.
• Ultrasound working frequency: 2 MHz ± 10%
• Fetal heart rate:
- range: 50-240 bpm
- resolution: 1 bpm
- accuracy: ± 2 bpm
• Alarm:
- high limit: 160 bpm
- low limit: 120 bpm
• Ultrasound intensity: < 5 mm/cm²
• Auto power off after 1 minute no signal
• Dimension: 135x92x29 mm
• Weight: 245 g
• Power supply: 2 AA Batteries LR6 - 1.5 V DC
