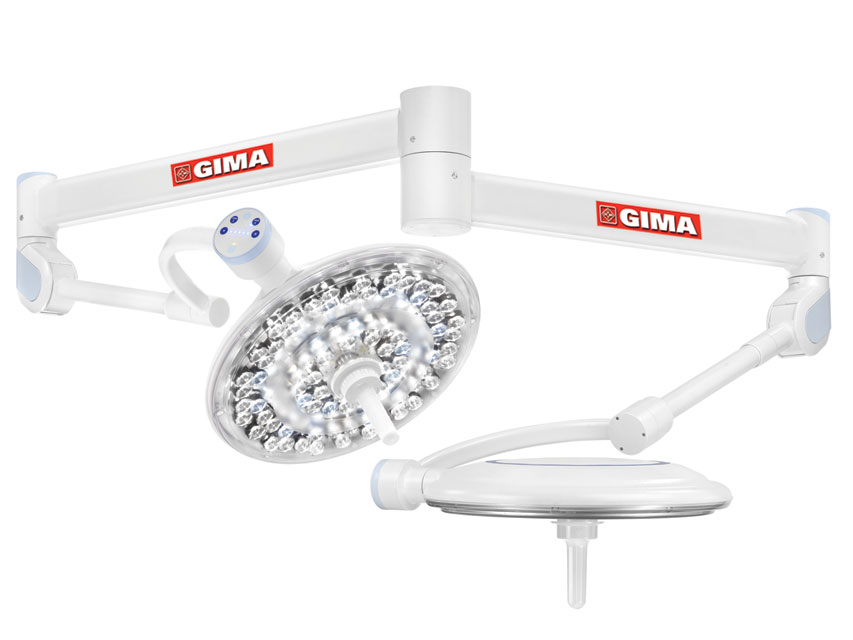

GIMALED O.T. LED LIGHT - ceiling - double

(Sold out, replaced by code 49173)
  • 0
49183
1 pc
1
Medical device
I
No
No
2690377
Z12010701
8023279491838
Download Area
Operator Manual
Operator Manual
Box/Label
Box/Label
Declaration of conformity
Declaration of conformity
ISO 9001/13485 Certificates
ISO 9001/13485 Certificates

GIMALED O.T. LED LIGHT - ceiling - double (ceiling >3.80 m needs 49220)

GimaLed light with 81 LEDs: sophisticated design which combines excellent lighting features with exceptional mechanical characteristics for extra soft movement.

Deep light: 27 inner fixed LEDs for central illumination and 54 LEDs (six modules of nine LEDs each) moved by servo-motor, allow surgeon to adjust light field diameter.

Shadowless light: 81 LEDs arranged on a round surface grant the best light emitting surface and avoid any shadow effect caused by any interposition between light beams and lighted surface.

Bright light: two colour selections, 4,000K and 4,600K, made of white LEDs only, no coloured shadow effect. Light intensity of 160,000 Lux.

Major features:
- collimated light beams for a working distance from 70 to 160 cm
- high colour rendering index (CRI) 95, R9 >90
- optimisation of LED thermal management by heat dissipation convection to avoid illuminance reduction during surgery
- PMMA optical lenses and polycarbonate protective screen
- Zener to grant light in case of even one LED failure
- reduced consumption, high efficiency
- optional pre-wired system for Wi-Fi HD camera

• Light intensity at 1 m distance (Ec): Klx 320
• 2 Colour temperature - switchable:°K 4.000 e 4.600
• Colour rendering index (CRI): Ra 95
• Light feld Ø (adjustable): 11-35 cm
• Light field Ø where illuminance reaches 10% of Ec (d10): 260 mm
• Light field Ø where illuminance reaches 50% of Ec: 150 mm
• Total radiated energy Ee where illumination reaches max level: 556 W/m2
• Average LED life: 50.000 ore
• Power supply: 100-240 V - 50-60 Hz - 61-71 W
• Regulations: IEC 60601-2-41 - 93/42/EEC
• Made in Italy
