OXFORD PLUS WHEELCHAIR - 46 cm
|
|
| 43274 | |
| 1 pc | |
| 1 | |
| Medical device | |
| I |
| Yes | |
| Yes |
| 2537327 | |
| Y122106 | |
| 8023279432749 | |
| 16949 | |
| 41512 | |
| 975866284 | |
Operator Manual
Box/Label
Declaration of conformity
ISO 9001/13485 Certificates

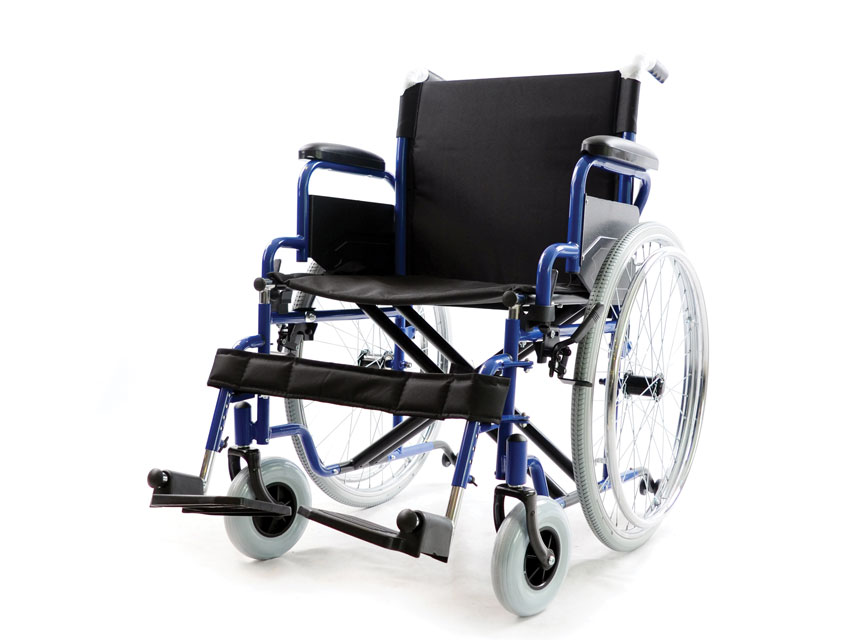

OXFORD PLUS WHEELCHAIR - 46 cm - black tissue - with solid PU rear wheels Ø 61 cm (24") and anti tipper system
- blue powder coated steel frame
- solid PU rear wheels Ø 61 cm (24") with chromed steel handrim and quick release axles
- front solid PU wheels Ø 20 cm (8")
- locking brakes on rear wheels
- front powder steel fork
- padded flip-up armrests
- detachable footrests, flip-up plate, with leg straps
Black nylon padded seat and back
Handgrip to fold wheelchair
Quick realease system
Large pocket on the back
Anti tipper system
Supplied with pump and manual: GB, FR, IT, ES, PT, DE, GR, SE.
• Total width: 63 cm
• Folded dimensions: 26.5 cm
• Seat width: 46 cm
• Rear wheel diameter: 61 cm
• Front wheel diameter: 20 cm
• Seat height: 50 cm
• Total wheelchair height: 91 cm
• Total wheelchair length: 103 cm
• Backrest height: 40 cm
• Seat depth: 44 cm
• Max load: 120 kg
• Kit size: 82 x 27 x 93 cm
• Net Weight: 18 kg
• Gross Weight: 20 Kg
