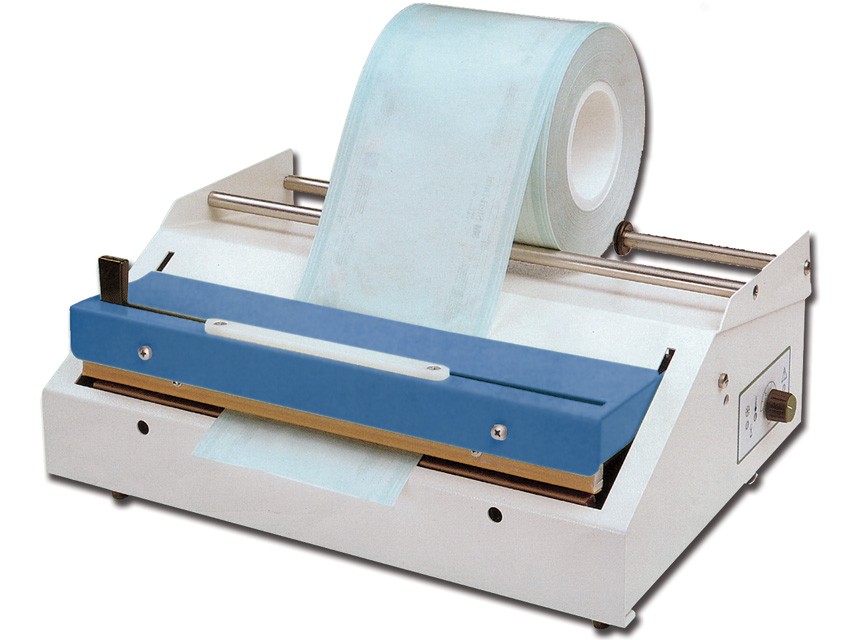

D-351 IMPULSE SEALING MACHINE

Compact impulse medical sealers, designed to be used in medical, dental, oculistic surgeries and test laboratories.

Main features: sealing and cutting length 35 cm - Safety check with alarm. Main board with temperature control to avoid overheating of the sealing wire - Sealing bars closed by electromagnet. Complete with foil-roll dispenser and built-in cutting device.

Easy: the bars close automatically by the pressure of one finger. The electro-magnet guarantees a steady sealing pressure for the whole set period. The sealing bar opens automatically at the end of the cycle.

Quick: the electro-magnetic system allows a substantial saving of the packing time. Quick foil feeding.

Safe: the machine does not start the sealing cycle if there is an object with a thickness over 3 mm between the bars.

The electronic temperature control through a NTC probe provides a perfect temperature accuracy from seal to seal.
The electronic alarm function avoids any overheating.

Made in Italy.

Sealed materials: paper/polyethylene/polyester
Sealing length - width: 350 mm - 8 mm as per DIN 58953-7:2010
Electronically controlled sealing time: 0.5 sec.
Cutting length: 350 mm
Foil-roll dispenser 350 mm
Power: 230V- 50/60 Hz single - phase
Max absorption: 900W, only during the sealing time
Dimensions: 44x17.5x31 cm
Weight: 18 kg
