GIMA URINE ANALYZER with Bluetooth
|
|
| 24046 | |
| 1 pc | |
| 1 | |
| IVD - Professional Use | |
| A |
| 2402832 | |
| W020101020101 | |
| 8023279240467 | |
| 977810593 | |
Operator Manual
Box/Label
Certificates
Technical Sheet/Test Report
Declaration of conformity
ISO 9001/13485 Certificates

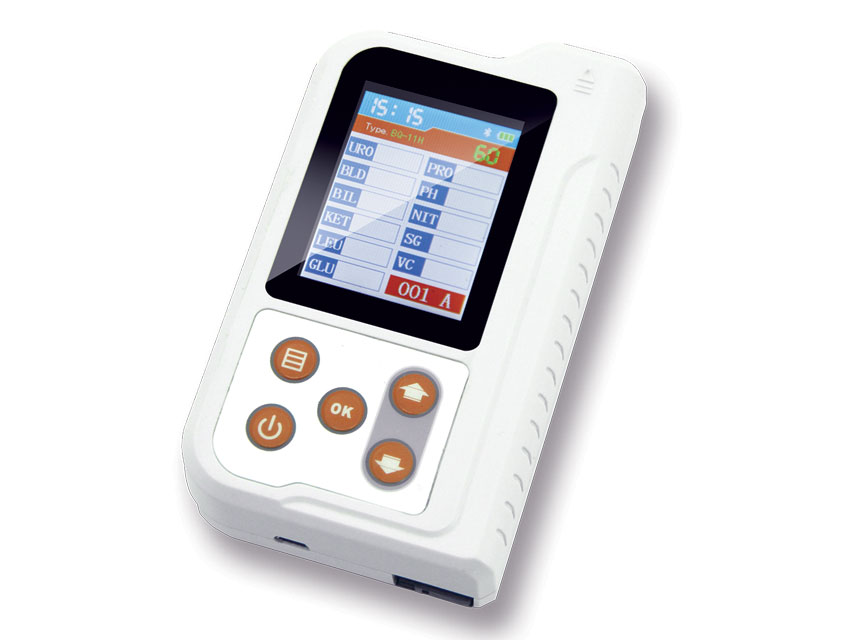

GIMA URINE ANALYZER WITH BLUETOOTH
Gima urine analyzer is a high-precision instrument with advanced technologies for clinical inspection of urine. It offers easy and quick operation, exact results and good repeatability.
Features:
- high-luminance, white LE D, features long life and good stability
- large LCD display
- user-friendly interface
- monitoring the whole testing process, and audible-control prompt
- data transmission function.
Application:
- convenient point of care testing for doctor
- chronic diseases, long-term monitoring for nephrotic patients
- health examination
- use as telemedicine terminal.
Tested parameters
Glucose (GLU), Bilirubin (BIL), Specific gravity (SG), PH, Ketone body (KET), Occult blood (BLD), Protein (PRO), Urobilinogen (URO), Nitrite (NIT), Leukocytes (LEU), Ascorbic acid (VC).
Can be used only with Urinalysis strips 24076-7.
PHMS App
Free App to save data, check report and results.
Multilingual manual and box: GB, FR, IT, ES, SE.
Working mode: One-step
Internal language: I talian and English
Display: 2.4" LCD, resolution: 320x240
Data storage: 500 sample data
Principle: RGB tricolor test theory
Communication interface: Micro USB interface, Bluetooth wireless communication
Repeatability: CV =1%
Stability: CV =1%
Record mode: LCD display, flash ROM data storage
Power supply: Built-in rechargeable lithium battery 3.7 V, 1800 mAh
Host computer: DC 5 V, 1 A
Adapter: AC 100-240 V, 50/60 Hz
Dimension - Weight: 126x73.5xh 30 mm - 0.18 kg
