NEW OXY-200 DESKTOP PULSE OXIMETER
| 35213 | |
| 1 pc | |
| 1 | |
| Medical device | |
| II B |
| 1426360 | |
| Z1203020408 | |
| 8023279352139 | |
Operator Manual
Box/Label
CE Certificate + extension letter
Declaration of conformity
ISO 9001/13485 Certificates

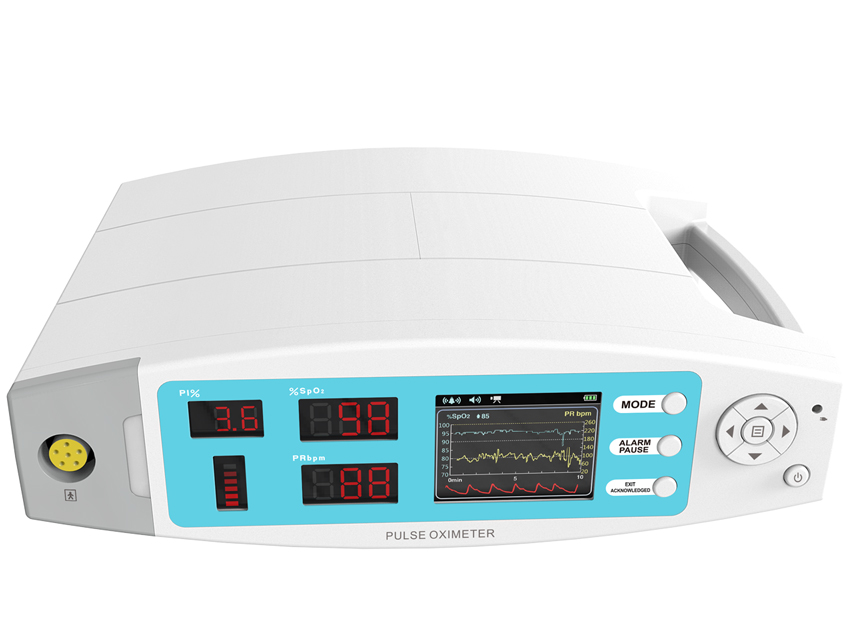

OXY-200 DESKTOP PULSE OXIMETER with monitor and battery
Portable oximeter displays SpO2, PR, bar graph, PI, pulse waveform and battery power.
Multiuser data storage and review.
Stored data can be uploaded to PC in real time.
Finger adult probe, battery and software for PC download are included.
Continuous working time: more than 1 hour.
Audible and visible alarm for over-limit and low battery.
Upper and lower alarm limit can be set.
Handle for transport.
Screen brightness, volume and display mode can be adjusted.
320 x 240 TFT screen and LCD.
Menu operation easy to use.
Multilingual box and manual (GB, FR, IT, ES).
Power supply: 100-240 V, 50/60 Hz rechargeable lithium battery
SpO2 measuring range: 0-100% ±2% (between 70-100%) Resolution: 1%
Pulse rate: 30-250 bpm ±2 bpm or ±2% (select larger) Resolution:1 bpm
PI measuring range: 0-20% ±1% (between 1%-20%) Resolution: 0.1%
Size: 269x222x79 mm - Weight: 1 kg
User manual (GB, IT)
