OXY-50 BLUETOOTH PULSE OXIMETER with software
| 35103 | |
| 1 pc | |
| 1 | |
| Medical device | |
| II B |
| 2696554 | |
| Z1203020408 | |
| 8023279351033 | |
Operator Manual
Box/Label
CE Certificate + extension letter
Declaration of conformity
ISO 9001/13485 Certificates

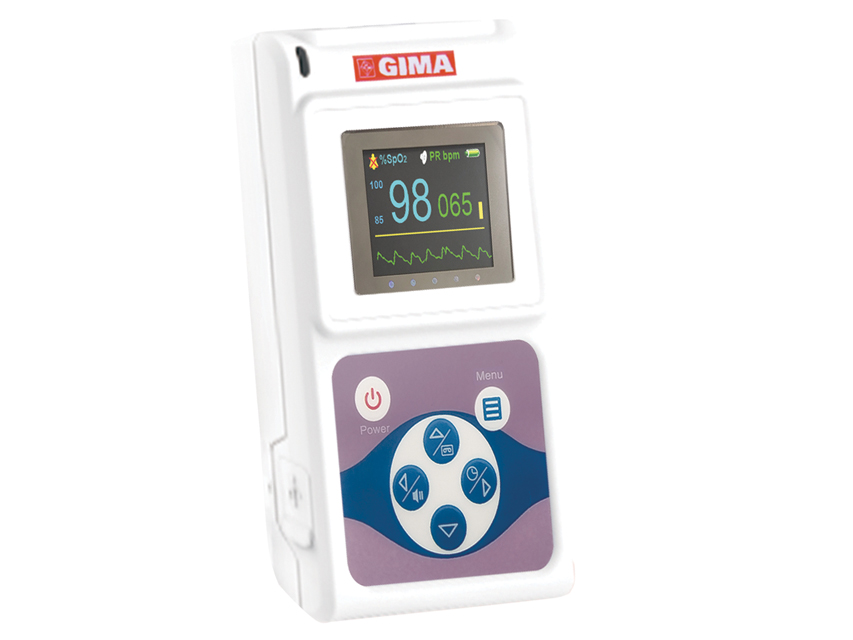

OXY-50 BLUETOOTH PULSE OXIMETER - with software
Pocket fingertip pulse oximeter with colour display for routine check and continuous monitoring use.
- display: 1.77" colour TFT
- resolution: 160x128
- alarm sound, pulse tone
- record: data can be recorded up to 24 hours
- alarm: adjustable high and low limits
- PC software for transfering real time data
Supplied with one adult probe, 2 AA batteries, USB cable, PC software (GB, FR, IT, ES, DE, RU, PL) and user manual (GB, FR, IT, ES)
Display mode (TFT display)
SpO2: 2 digits
Pulse rate (PR): 3 digits
Pulse intensity: bar-graph
Pulse rate
Measuring range: 30 ~ 250bpm
Resolution: 1 bpm
Accuracy: ±2bpm or ±2%
Average pulse rate: Moving calculate the average pulse rate every 4 cardio-beat's cycle. Deviation between average value and true value does not exceed 1%
Pulse intensity range: Continuous bar-graph display, the higher display indicates the stronger pulse
SpO2
Measuring range: 0~100%, (resolution 1%)
Accuracy: 70~100%: ±2%
Average value: Calculate the average value every 4 measure value. Deviation between average value and true value does not exceed 1%
Power supply: DC 3V, < 100 MA
Battery: dry battery (2AA)
Oxymeter probe: wavelength: 660 - 905 nm
Dimension: 110(L)x60(W)x23(H) mm
Weight: about 120g (with dry battery 2AA)
Safe type: BF Type
