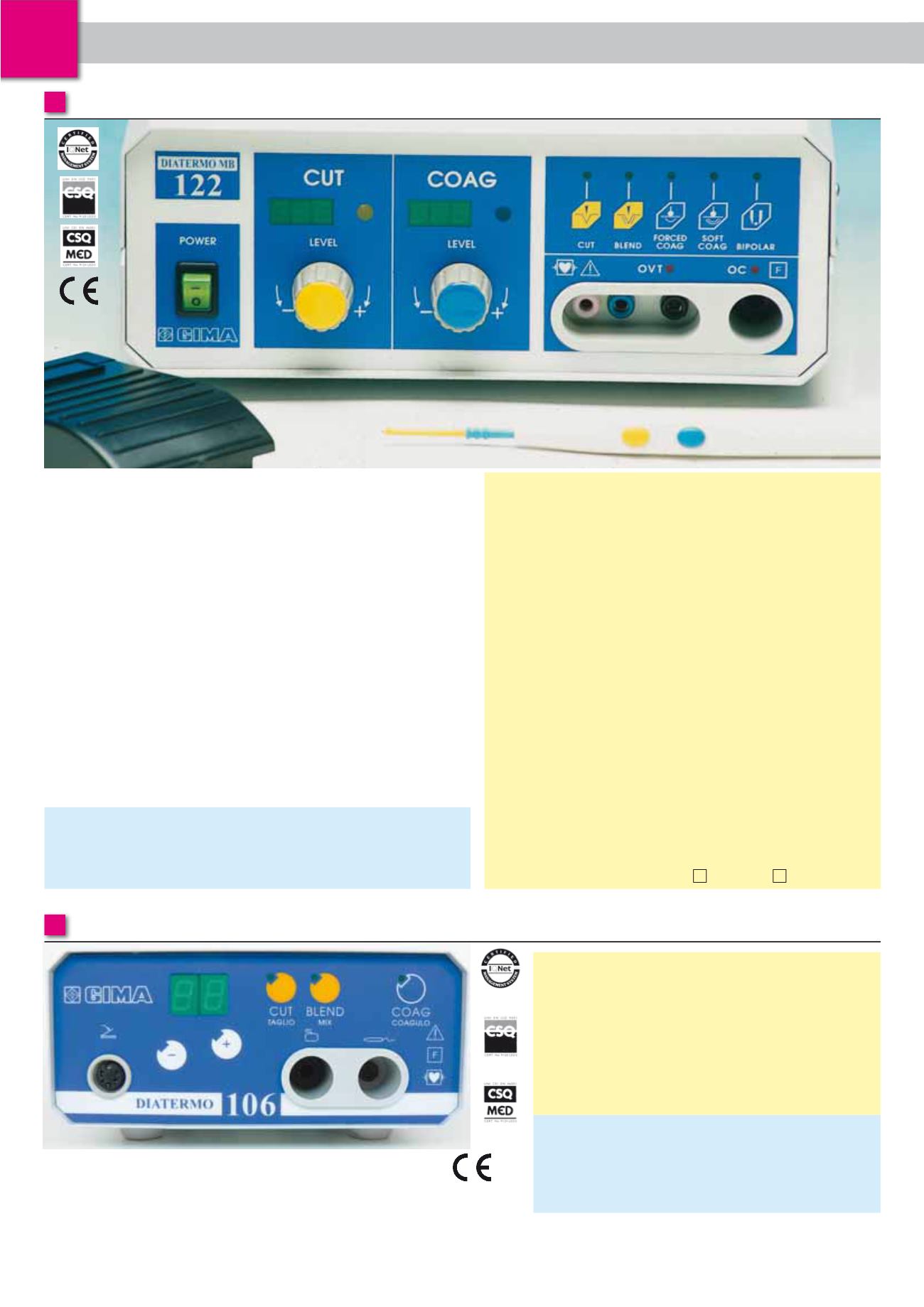

• 30540 DIATERMO MB 122 - mono-bipolar - 120 W
• 30541 DIATERMO MB 160 - mono-bipolar - 160 W
MB 122 and 160 are HF electrosurgical units suitable to perform
middle monopolar or bipolar electrosurgery.
By selection of the modes of operation they provide pure cut,
coagulated cut, forced coagulation, soft coagulation and, with
forceps, bipolar coagulation. The use of either split or normal
neutral plate is allowed. MB 160 is recommended in case of damp
operational fields, for instance mucous, with consequent need
to have reserve of usable power. For these reasons, MB 160 is
suggested for Gynecological and orthopedic surgery.
Leading-Edge Technology.
This advanced concept device enables
highly professional surgery intervention thanks to ergonomic and
safety features derived from high power theatre apparatus.
Complete safety.
Open Circuit (OC) Alarm warns the user that
connection into the neutral plate has not been made or that
the cable is disconnected or the neutral plate is not in contact
with the patient. The alarm is signalled by an intermittent beep
together with a flashing red light on the front panel. In this case
HF emission for cut and coagulation operation is switched off.
OVT Alarm.
The unit includes an internal circuit protection
warning when the current delivery lasts too much.
0051
Diatermo MB 122 - MB 160 standard accessories
MB single-use two button handles
MB operative foot-switch 30577 (usable as alternative to handle)
MB flat neutral plate Power cable 2 m
Kit of 6 (MB 122) or 10 (MB 160) short autoclavable electrodes, diam. 2.4 mm.
User manual: available in English, Spanish, Italian, French, Polish
TECHNICAL SPECIFICATIONS
MB122
MB160
Crest
Factor
Minimum preselectable power
0
0
Level step
1
1
Maximumoutput power CUT (W)
120 250Ω
160 250Ω
1.5
Maximumoutput power BLEND (W)
90 200Ω
120 200Ω
2.1
Maximumoutput power COAG FORCED (W) 80 150Ω
100 150Ω
2.0
Maximumoutput power COAG SOFT (W)
60 100Ω
80 100Ω
1.7
Maximumoutput power BIPOLAR (W)
40 100Ω
60 100Ω
1.5
Working frequency
600 kHz
600 kHz
Weight Kg
7
7
Size LxHxD mm
260x110x265 260x110x265
Operating voltage (switchable)
115 -230
115 -230
Mains frequency (Hz)
50-60
50-60
Fuses 230Vac (5x20) TIMED
2x 3.15A
2x 3.15A
Fuses 115Vac (5x20) TIMED
2x 6.3A
2x 6.3A
Electrical input power (VA)
300
350
Electrical input current (230Vac) (A)
1.3
1.5
Electrical input current (115Vac) (A)
2.6
3
Five steps adjustable sound level
(from 55- to 75dBA)
•
•
Self-check
•
•
Power accuracy output warning
•
•
Split or not split patient plate allowed •
•
Last working condition storing
•
•
Electrical Class (EN60601 - 1)
I CF
I CF
MDD 93/42/EEC Class
II B
II B
Patient circuit
F
F
DIATERMOMB122ANDMB160MONO-BIPOLAR
- 120W- 160W
30540
0051
STANDARD ACCESSORIES
KIRKY single-use handle without buttons
Standard foot-switch (30577)
Rod neutral electrode and cable
Kit of 6 short autoclavable electrodes, Ø 2.4 mm, length 5 cm
Power cable 2 m - Shuko plug
User manual: available in English, Italian, Spanish. French
• 30516 DIATERMO 106 - 50W - monopolar
This HF electrosurgery unit, is particularly suitable for small
operations and is recommended for dentistry, first aid and
dermatology work. It offers precision of cut and immediate
coagulation and give excellent results in a large range of
applications: from uterine coagulation to microcoagulation
in dermatology. The modes of operation, CUT, COAG and
TECHNICAL SPECIFICATIONS
Output power: CUT
50W/400 ohm
COAG 40W/400 ohm
BLEND 45W/400 ohm
Working frequency:
600 kHz ±10%
Size: 180x180xh 100 mm
Weight: 2.8 kg
Operating Voltage: 115/230 V - 50/60 Hz switchable
Electric input power: 90 VA
Fuse: 2x1 AT
Alarm for overheating
Footswitch operating
Norms: EN60601-1Class I CF, EN 60601-1-2 93/42/EEC (Class IIb)
Made in Italy
Warranty: 12 months
BLEND, can be easily selected by a switch on the front panel.
The complete isolation between patient and the unit and strict
respect of international norms guarantee total safety.
MONOPOLAR ELECTROSURGERY UNIT - 50W
