GYNAECOLOGY
142
Doppler
Pulsed Doppler
Ultrasound frequency: 1.0 MHz
Intensity: <10mW/cm
2
FHR range: 50-240 bpm (± 1 bpm)
Fetal movement
Detection source: Ultrasound
pulsed doppler
UC
Frequency response: DC 0.5 Hz
Reference (zero) control
Measurement range: 0~99
units
Printer
Thermal array type
Print speed: 1, 2, 3 cm/min
Paper feeding function
Display
7-segment LED (29520)
2 channels (HR, UC) (29520)
320x240 Colour LCD (29531)
Indicators
Heart rhythm with signal quality
Alarm, printing on/off state
AC power
Set-up
Alarm upper/low limit value
Record speed, paper grid, Fetal
Movement On/Off, Time/Date,
Print contrast, Auto print period
Power
INPUT: AC 100-240V (50/60 Hz)
296(W)x305.5(H)x92.5(D)mm,
Approx 2.9kg (29520),
3.2kg (29530-29531)
External link
RS-232C: Program Download

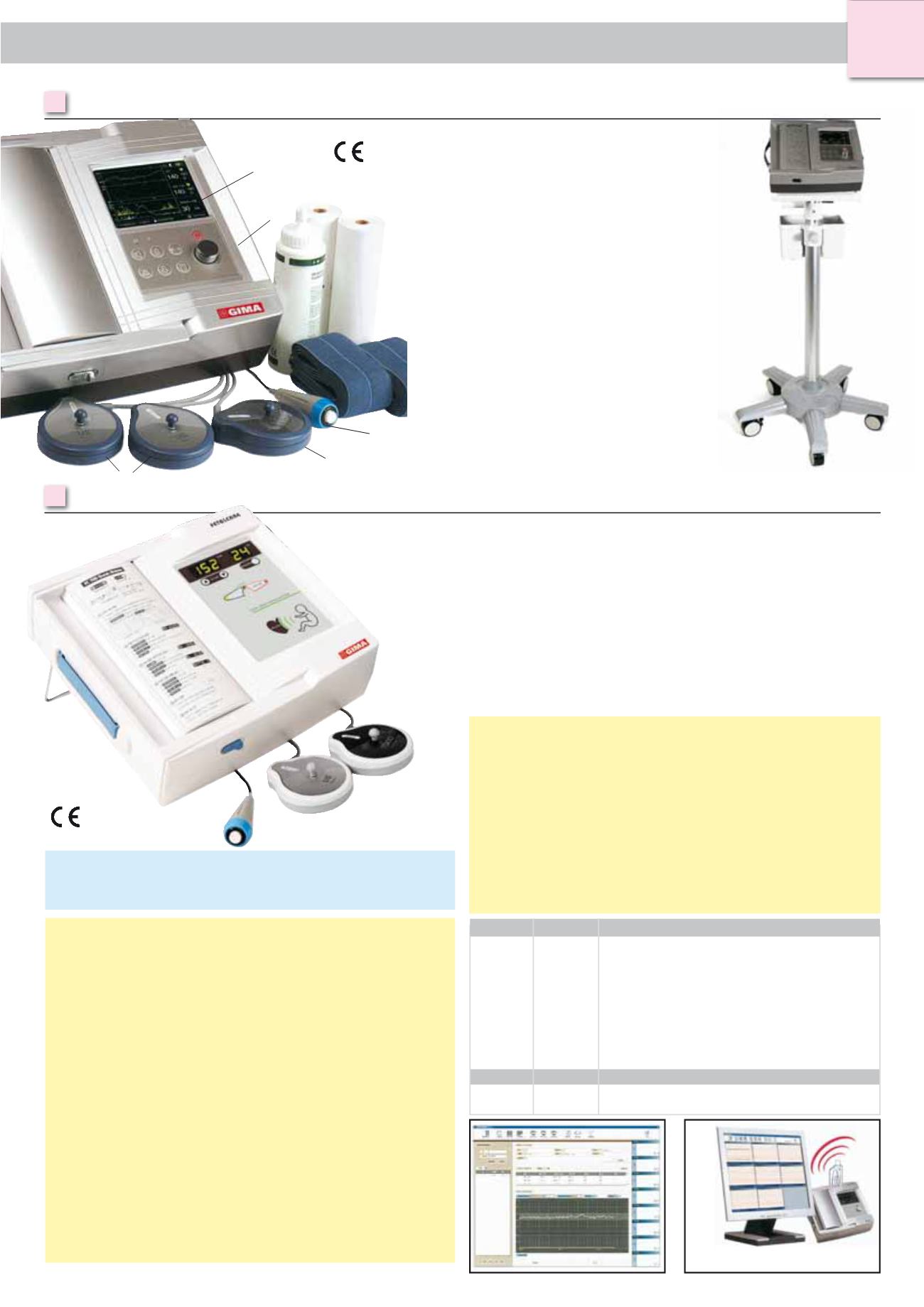

TECHNICAL SPECIFICATIONS FOETAL MONITORS (29520, 29530, 29531)
• 29530 SINGLE FOETAL MONITOR - FC1400
• 29531 TWINS FOETAL MONITOR - FC1400
Superior data display
- 320x240 color LCD viewer (4.3 inch)
- FHR and automatic fetal movement detection
- 12 hours of memory capacity
- recommended after week 30
Extreme data accuracy and access
- high-accuracy and wide detection area
- easy on-screen scrolling function
- endurable watertight probes, 1 MHz
Printout
- CTG analysis printing
- both standard and A4 size paper usable
- normal fax paper usable
- high speed printout (50 cm/min)
Other advantages
- wireless central monitoring up to 8 beds (Option)
- PC compatible
- internal battery lasting 2-hours (Option)
- power adapter 100-240 V, 50-60 Hz
See below for accessories
STANDARD ACCESSORIES (29520, 29530, 29531)
Doppler transducer (2 for Twins Foetal Monitor)
Toco transducer, Event maker, Gel, Printer paper, Belts, Manual
• 29520 FOETAL MONITOR GIMA FC 700
Cost-effective single fetal monitor
Extreme ultrasound doppler sensitivity
- high-accuracy with 1 Mhz frequency
- automatic/manual Foetal Movement detection
- auto NST (Non-stress test) function from 10 min. to 1 hour.
Data printout
- CTG analysis printing
- A4 size chart paper with
perforation line
- plain thermal fax paper usable
- print speed 1, 2, 3 cm/min
ACCESSORIES FOR FOETAL MONITORS
For 29520 For 29530-31
WIRELESS CENTRAL STATION FOR FOETALMONITORS
For 29520 For 29530-31
Paper roll - 215 mm x 23 m (29522),
152 mm x 25 m (29528)
Doppler transducer - spare
UC/Toco transducer up to S/N FF07XXX
UC/Toco transducer since S/N FF08XXX
Toco transducer - spare
Trolley with 2 baskets (adjustable height)
Battery NI-MH, 12V, 2600 mA
AC adaptor
Belt 5.3x148 cm
Central station (PC, monitor, software, wireless,
connection kit) to manage up to 8 monitor
Wireless bluetooth 8 beds
central system (distance 10-100 m)
Trolley suitable
for 29520, 29530
and 29531
COLOUR DISPLAY, SINGLE OR TWINS FOETAL MONITORS
Revolving castors
Adjustable
height
0123
Event marker
Toco probe
1 MHz robust watertight probes
Superior LCD colour display
12 hours scroll function
29531
0123
29520
- Period: test period
- Average baseline FHR (bpm)
- Number of UC
(frequency / h)
- Number of acceleration
(frequency / h)
- Number of deceleration
(frequency / h)
- Late DEC: number of late deceleration
- Early DEC: number of early decele-
ration
- Variable DEC: number of variable
deceleration
- TACHY: moderate (>160 bpm): period
of that FHR is between 160~190
(minutes)
- TACHY: severe (>190 bpm): period of
that FHR is over 190 (minutes)
- BRADY: moderate (<110 bpm):
period of that FHR is between 90~110
(minutes)
- BRADY: severe (<90 bpm): period of
that FHR is lower than 90 (minutes)
Easy-to-use
- one- touch operation and
easy setup
- alarm function (FHR high-low)
- s/w upgrade via internet
ANALYSIS FUNCTION FOR 29520, 29530, 29531
29519
29522
29523
29524
29529
-
29519
-
33747
29525
29527
29528
29532
-
-
29533
29519
29534
33747
29525
29527
COST-EFFECTIVE SINGLE FOETAL MONITOR
