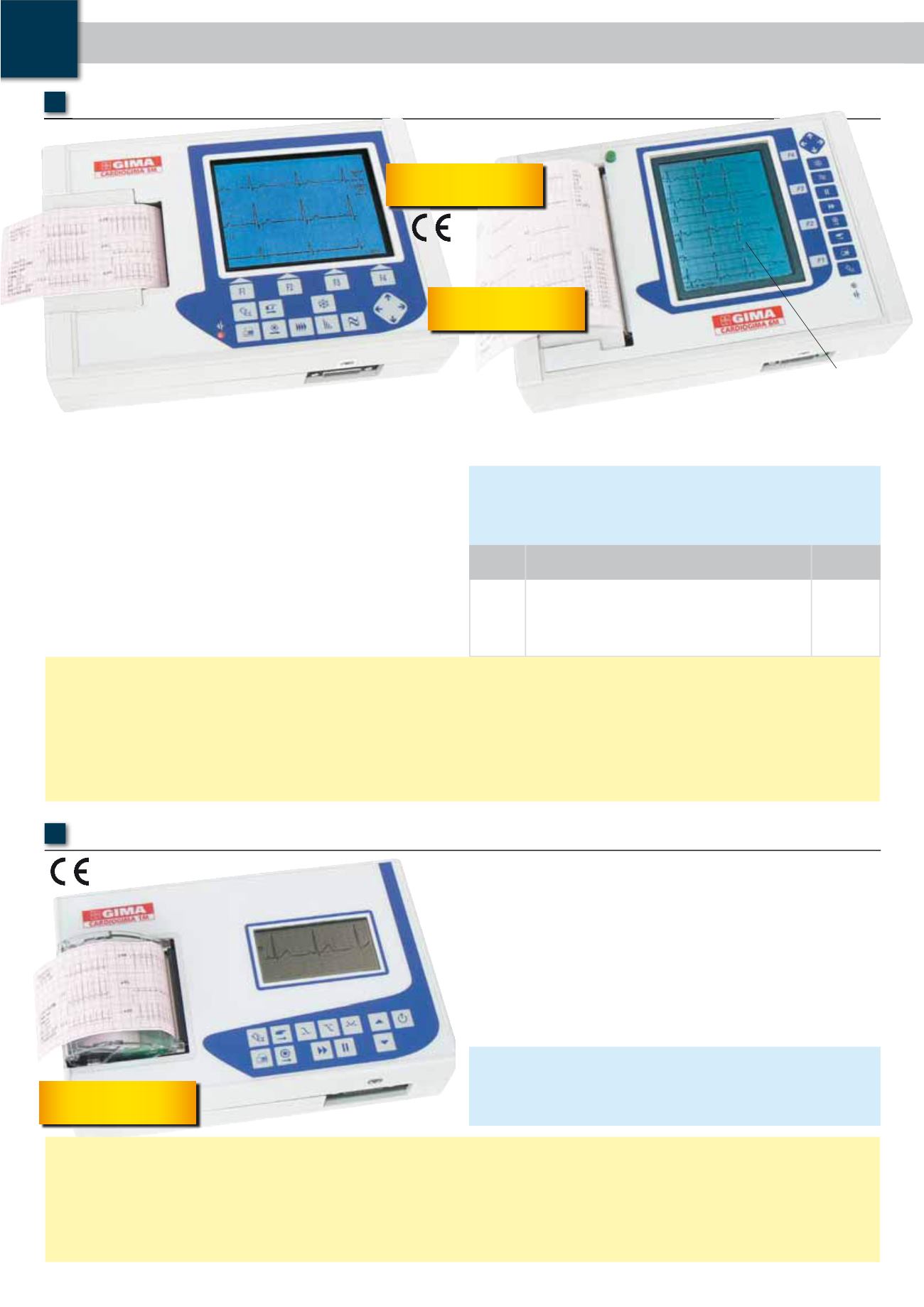

• 33334 CARDIOGIMA 3M - 1-3 ch. with interpretation
• 33350 CARDIOGIMA 6M - 3-6-12 ch. with interpretation
(monitor 3-6 channels, printer 3-6-12 channels)
- LCD monitor in Standard or Cabrera format with base line
setting
- High resolution thermal printer (8 dots/mm): hardcopy 1-3 or
3-6-12 channels real time with possibility to print a millimetric grid
- Manual or automatic recording
- Image freeze with memory scrolling for reviewing and hard copy
of acquired signals (Memory 10 seconds for each lead)
- Digital filters for elimination of muscle tremors, power line and
base line noises.
- Pacemaker detection
- Power supply by built-in high capacity Ni-Cd batteries and fast
charging time
Portable with small dimensions and light weight
33334
0068
33350
Large, high
resolution backlight
Display:
LCD 320x240 dots.
TECHNICAL SPECIFICATIONS CARDIOGIMA 3M AND 6M
Power supply: internal rechargeable ni-cd batteries
AC/DC Adapter: 100-240V, 50-60 Hz; 200mA
Battery autonomy: 2.5 hours
Applied part: CF type
Input impedance: > 100 Mohm
Frequency response: 0.05: 145hz
Cmrr: > 91 dB (33334), Cmrr: > 100 dB (33350)
Time constant: > 3.2 s
Acquisition: 12 bit 800 samples/sec/channel-isochrome
Leads: 12 standard or Cabrera
Sensitivity: 5mm/mV; 10mm/mV; 20mm/mV ±5%
Scrolling speed: 5mm/s; 10mm/s; 25mm/s; 50mm/s
Signal memory: 10s for each lead
Printer: thermal printer 8 dots/mm, paper 58 mm (3M) 110 mm (6M).
Filters: muscles tremors 35Hz digital; power line interferences 50-60Hz
digital; high pass 0,5Hz digital
Defibrillation protection: internal
Display/Hardcopy: 1/3 channel (3M) 3/6/12 channel (6M)
Dimensions: 240x160x65 mm. Weight: 1.5 kg. Made in Italy
STANDARD ACCESSORIES 3M AND 6M
Patient cable
4 limb electrodes
Manual (English, Italian)
Rapid guide: English, Spanish, Italian
WITH
INTERPRETATION
- Very simple operation by pre-defined fast keys and menus
- Based on a risk processor for a full digital signal processing
Made in Italy.
GIMA
code
CARDIOGIMA ACCESSORIES
Transport bag (see at page 50)
Thermal paper 58mm x 25m (Cardiogima 3M)
Thermal paper 112mm x 23m (Cardiogima 6M)
ECG cable - spare
27139
32996
32953
33328
Minimum
order
-
box of 20
box of 10
-
6 chest limb electrodes
1 roll of paper
1 bottle of gel
Battery
• 33329 CARDIOGIMA 1 M - 1-3 channel ECG with monitor
A real portable ECG with small dimension and light weight,
with LCD monitor 128x64 pixel, high resolution thermal printer
(8 dots /mm hardcopy, 1 channel real time) and parameters
calculation. With manual or automatic recording, memory 10
seconds for each lead. Includes digital filters for elimination of
muscles tremors, power line and base line noises. Based on a
risk processor for a fully digital signal processing. Made in Italy.
• 32996 THERMAL PAPER 58 mm x 25 m - box of 20
• 33328 ECG CABLE - spare
0068
33329
Power supply: internal rechargeable Ni-Mh batteries
AC/DC Adapter: 100-240V, 50-60 Hz; 200mA
Battery autonomy: 3 hours
Applied part: CF type
Input impedance: > 100 Mohm
Frequency response: 0.05: 145hz
Cmrr: > 100 dB time constant: > 3.2 s
Acquisition: 12 bit 800 samples/sec/channel
Leads: 12 standard or Cabrera
Sensitivity: 5mm/mV; 10mm/mV; 20mm/mV ±5%
Scrolling speed: 5mm/s; 10mm/s; 25mm/s; 50mm/s
Signal memory: 10 sec for each lead
Printer: thermal printer 8 dots/mm, paper 58 mm.
Defibrillation protection: internal
Filters: muscles tremors 35Hz digital;
power line interferences 50-60Hz digital;
high pass 0.5Hz digital
Dimensions: 190x120x60 mm. Weight: 1 kg.
Conformity standards: 93/42/CEE; EN60601-1;
EN60601-1-2; IEC601-2-25 Made in Italy
TECHNICAL SPECIFICATIONS
STANDARD ACCESSORIES
Patient cable
1 bottle of gel
Manual (English, Italian)
Rapid guide: English, French, Spanish, Italian
1 roll of paper
4 limb electrodes
6 chest limb electrodes
Battery
3 YEARS WARRANTY
made in Italy
3 YEARS WARRANTY
made in Italy
3 AND 6-12 CHANNEL DIGITAL ECG
WITH HIGH RESOLUTION MONITOR
CARDIOGIMA 1M
- 1/3 CHANNEL ECG WITH PARAMETERS CALCULATION
