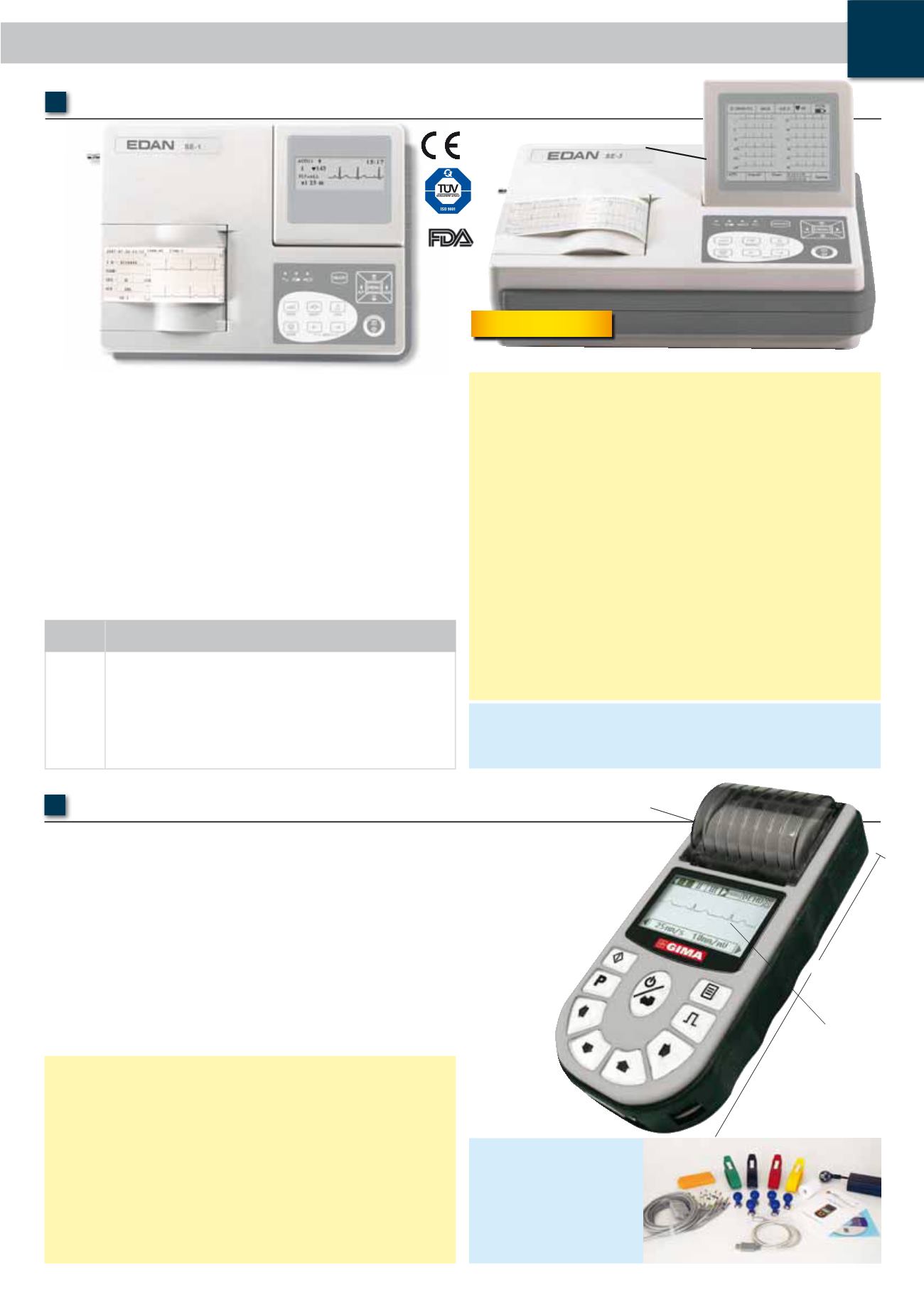

SMART SINGLE AND THREE CHANNEL ECG
33330
TECHNICAL SPECIFICATIONS
33330
33332
Lead:
Standard 12 leads
Acquisition mode:
Single
12 leads simultaneously
Sensitivity:
2.5, 5, 10, 20, mm/mV
Input impedance:
> 50 MΩ
> 50 MΩ
Filter:
EMG Filter 35 Hz (-3 dB)
EMG Filter 25/35/40 Hz off
AC/DFT Filter 50 Hz/60Hz
DFT Fliter 0.05/0.15/0.25/0.5 Hz
(-20 dB)
Low pass filter 150/100/75 Hz
AC Filter 50 Hz/60 Hz
Recording mode:
Auto/Manual
Auto/Manual/Rhythm
Rhythm lead:
Any lead selectable
Safety standard:
IEC I/CF
Power supply:
AC: 100 V-115 V/220 V-240 V, 50/60 Hz
Rechargeable Li-ion battery: voltage 14.8 V
More than 3 hours continuous operation with battery supply
Data storage:
-
144 ECG's
Thermal paper:
50 mm x 30 m
80 mm x 20 m
Paper speed:
25mm/s, 50 mm/s (± 3%)
5mm/s, 6.25 mms 10mm/s,
12.5mm/s, 25mm/s, 50 mm/s
Dimension:
288x210x70 mm
Weight:
2.3 kg (with battery)
2.5 kg (with battery)
Display:
192x64 pixel LCD 320x240 pixels LCD (Wide screen)
Display language selectable GB, IT, FR, ES, PL, RU, GB, IT, FR, ES, RU, PL, CZ, RO, DE,
TR, UA
TR, HR, UA
Interface:
--
Ethernet, RS232, USB
Single and three channel
with 12 channel display
STANDARD ACCESSORIES
Patient cable
1 roll of paper
1 bottle of gel
Manual: English, Italian,
On request: FR, ES, PT, TR (SE-1 and SE-3), DE, RU (SE-3 only)
4 limb electrodes
6 chest limb electrodes
Rechargeable battery
33332
GIMA
code
SMART ECG AND ACCESSORIES
Smart SE-1 Single Channel ECG
Smart SE-3 Three Channel ECG - interpretative
ECG-Viewer Software (GB, FR, IT, DE, PL, RU, ES, TU)
Thermal paper - roll 50mm x 25m for 33330 and 33305
Thermal paper - roll 80mm x 25m for 33332/3 and 33306
ECG cable - spare
Rechargeable Lithium battery 2200 mAh - spare
Transport bag - see page 50
33330
33332
33336
32963
32964
33328
33318
27139
CARDIOPOCKET ECG -
1 CHANNEL
• 33257 CARDIOPOCKET ECG - with software
Compact and lightweight pocket device with unbeatable features:
- wide graphic display (it allows "live" view of ECG trace and selection of all parameters)
- rechargeable lithium battery operated (80 ECG with full charge)
- PC software with interpretation included for storing data into PC (English/Italian)
(operating system: Microsoft Windows 2000/XP/2003/Vista/7)
- multilanguage internal software: GB, IT, DE, FR, ES, TR, CN
- standard 12 leads ECG
- real time continuous records of clear and exact single channel ECG waveform and
notes. The notes include mark, sensitivity, chart speed, filter mode, etc
- full-touch keyboard control, easy to use. Screen displays, working position,
state of the instrument are clear and easy to be read.
• 32963 THERMAL PAPER - box of 20 rolls • 33328 ECG CABLE - spare
• 33243 RECHARGEABLE Li-Ion BATTERY up to S.N. CD 1212100050
• 33244 RECHARGEABLE Li-Ion BATTERY since S.N. CD 130730000-1
0123
Compact:
only 19 cm
(size: 19x9x4 cm)
60x35 mm
wide display
TECHNICAL SPECIFICATIONS
Power:
AC: 100-240V, 50/60 Hz - DC: 12V rechargeable battery
The instrument can work for more than 0.5 hours under DC supply
Noise level:
≤15μVp-p
CMRR:
>100 dB
EMG filter:
35 Hz
Time constant:
≥3.2s
Sensitivity display:
standard sensitivity: 10mm/mV±5%
Sensitivity setting:
1/2, 1, 2 (cm/mV), conversion deviation ≤5%
Recording system:
thermal-array, 8 dots/mm (vertical),
16 dots/mm (horizontal, 25 mm/sec)
Paper speed:
25 mm/s - 50 mm/s ±5%
Recording paper:
50mm, 20 m, high-speed roll
Safety standard:
IEC class I, type CF
Input circuit current: ≤100nA
Fuse standard:
AL 220V/2A
Weight:
800 g (with rechargeable battery and paper)
STANDARD ACCESSORIES
Integrated thermal
printer
INTERPRETATION
PORTABLE ECG - 1 and 3 channel
- foldable LCD screen
- built-in high resolution thermal printer
- built-in rechargeable Li-ion battery, AC/DC supply
- complete digital filter, avoid baseline drift, AC, EMG interfere
- baseline automatic adjustment
- auto/manual operation selectable
- lead-off detection and alarm
Three channel ECG also features
- interpretation tested by CSE/AHA/MIT database
- 12 Lead simultaneous acquisition
- automatic ECG parameters measurement and analysis
- auto, manual, rhythm work mode
- 12 leads grid printing on normal A4 paper by external printer
ECG Viewer Software
- compatible with Windows XP, Vista, 7
- multi format reports - XML/SCP/DICOM/PDF/JPG/BMP/TIF/PNG
- support bi-directional communication with ECG device
