ECG, MONITORS & ULTRASOUND
233

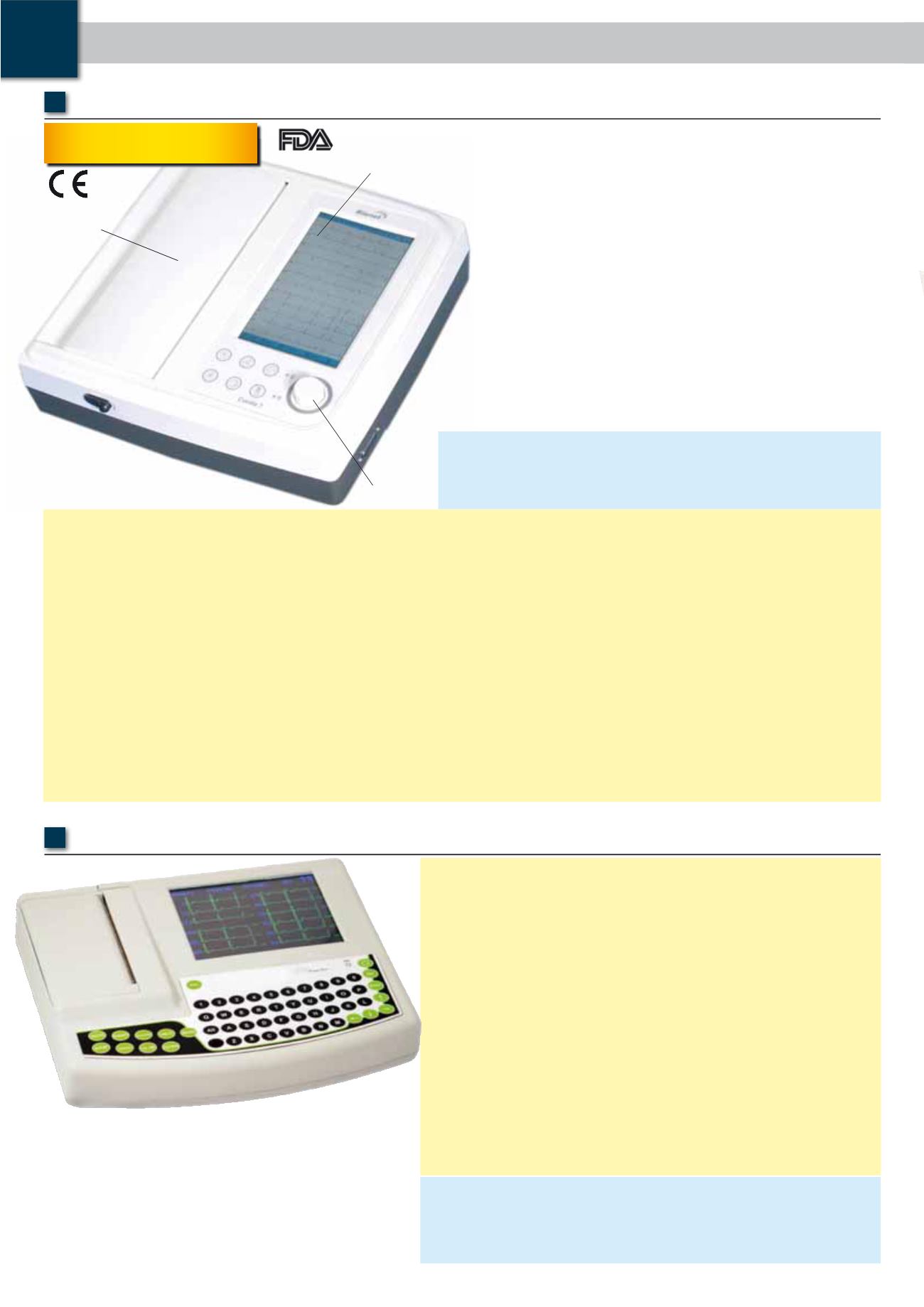

CARDIO 7: 12 CHANNEL
RESTING ECG WITH TOUCH SCREEN
3/6/12 CHANNEL ECG
WITH COLOUR DISPLAY AND INTERPRETATION
One time record:
3/6/12 channels
Width of record:
112 mm
Outside USB printer:
printout A4 (210 x 297)
Record speed:
5/10/25/50 mm/s
Sensitivity:
2.5/5/10/20 mm/mV
Digital filtration of disturbances: 25, 35, 50, 60 Hz
Display:
5.7” graphic, color TFT 320 x240
Analysis and interpretation:
HES compliant with EN 60601-2-51
Internal memory:
> 300 tests
Alphanumeric keyboard
Detection of stimulator impulses (pacemaker)
Automatic regulation of isoelectric line
Constant measurement of heart action (HR)
Acoustic signalization of detected stimulations
Paper easy-load
Signalization of wrong connection with particular electrodes
CMMR:
> 100 dB
Leads:
12 standard/Cabrera
Input channels:
floating, protected from impulse defibrillating CF
Power:
90-240 V, 50/60 Hz
Inside rechargeable battery:
Li-ion 7,2 V - 2200 mAh Li-ion
Power consumption:
< 30VA
Dimensions:
260 x 220 x 52 mm
Weight:
< 1.8 kg
Standards:
EN 60601-1, EN 60601-1-2, EN 60601-2-25, EN 60601-2-51
Class/Group:
Class A/Group 1 (CISPR-11)
TECHNICAL SPECIFICATIONS
ECG leads :
10 lead, 12 channel simultaneous ECG and acquisition
Dimension:
296(W) x 305.5(H) x 92.5(D)mm, approx. 3.5 kg
Recording channel: 3 channels + 1 rhythm, 3 channels + 3 rhythm,
6 channels + 1 rhythm, 12 channels, 60 seconds
1 channel, 5 minutes 1 channel and beat report
Sensitivity:
2.5, 5, 10, 20, auto (l~aVF: 10, V1~V6: 5) mm/mV
Printing speed:
12.5, 25, 50 mm/s
Sampling rate:
500 samples/sec
Filters:
AC (50/60 Hz, -20dB or better)
Muscle (25~35 Hz, -3dB or better)
Base line drift (0.1 Hz, -3dB or better)
Low pass filter: off, 40 Hz, 100 Hz, 150 Hz
Display:
7" color TFT LCD display (800x480), 12 channels
preview ECG wave
Monitor display:
ID, date, sensitivity, speed, filter, form, rhythm lead
User interface:
Touch screen (alphanumeric and symbol available),
Keyboard, rotary push-knob (pop-up menu)
Patient data:
ID, name, age, sex, height, weight, smoke, race
Basic measurement: Heart rate, PR int, QRS dur, QT/QTc, P-R-T axis
Recorder:
Thermal print head, roll paper
A4 report paper: 210x300 mm (8.5"x11")
Resolution: vertical: 8 dot/mm
horizontal: 16 dot/mm
Electrical:
Internal noise: 20 μV (p-p) max
Input circuit: floating input
Input impedance: ≥10 MΩ
Input voltage range: ≥ ±5 mV
Common mode rejection: > 100 dB
DC offset voltage: ≥ ±300 mV
Time constant: 3.2 sec
Patient leakage current: < 10 μA
Frequency response: 0.05 ~150 Hz
Isolated and defibrillation protected
Signal quality control: Disconnected lead detection
Pacemaker pulse detection
ECG data storage:
storage for 120 ECGs (Internal on flash memory)
Power:
AC 95~240 VAC, 50/60 Hz or battery (option)
1.0~0.5 A, 60 W max
Battery (Ni-MH):
1 hour of normal use (approx.100 ECG printouts)
Communication:
PC connection with RS232 interface and LAN
Safety conformity:
Class I, Type BF, CE, CSA, FDA, KFDA, SFDA, CCC
TECHNICAL SPECIFICATIONS
STANDARD ACCESSORIES
Patient cable 10 leads
1 bottle of gel
1 power cable
CD manual (English, Italian)
1 roll of paper
4 limb electrodes
6 chest limb electrodes
PC software for data management
• 33307 CARDIOGIMA COLOUR ECG 3/6/12 CHANNELS
3/6/12 channels electrocardiograph with analysis, HES
interpretation and software.
- internal memory for more than 300 tests
- pacemaker detection
- LCD TFT color display 5.7"
- USB output for printing A4 with external printer
- PC software for data management (switchable GB, IT, FR, PL)
Made in Europe.
• 32953 THERMAL PAPER 112 mm x 23 m - box of 10
• 33357 ECG CARDIO 7: 12 CHANNEL ECG WITH TOUCH SCREEN
- 12 channel interpretive ECG
- over 130 kinds of interpretation results based on advanced Minne-
sota code
- memory for up to120 patients
- real-time preview monitor
- PC compatible through LAN
- multi-Ianguage selectable software (English, Russian, French,
German, Italian, Chinese, Spanish, Turkish, Polish, Romanian,
Portuguese)
- lead fault message
- pace maker detection
- automatic arrhythmia detection
- 5 minute long term recording
- grid function allows you to use low cost plain fax paper
- wide and clear color TFT LCD (800x480)
- touch screen for easy operation
- adaptable UL (Portrait & Landscape mode)
• 32950 THERMAL PAPER A4 - box of 5 rolls
• 29534 RECHARGEABLE BATTERY - optional
• 29519 TROLLEY
• 33328 ECG CABLE - spare
0123
33357
STANDARD ACCESSORIES
Patient cable - 10 leads
LAN cable
1 bottle of ECG cream (70 g)
1 power cable
manual (English, Italian)
1 paper roll
4 limb electrodes
6 chest limb electrodes
EKG View Plus (GB, IT)
One touch operation
(monitoring, recording mode)
Rotary key
access to all
menus
Convenient A4 size
printouts allow
easy chart
filing
12 Channel
simultaneous
display
SOFTWARE EKG VIEW PLUS
for data storage on PC
Internal switchable software
in 9 languages:
GB, IT, FR,
PL, CZ, SI,
ES, RU, FI.
