ECG, MONITORS & ULTRASOUND
234
1 PC software (English/Italian)
1 LAN cable
1 Patient cable - 10 leads
4 ECG clip-on electrodes
6 Chest electrodes,
suction for adult
1 ECG electrode cream (70 g)
1 Power cable
1 Recording paper rolls
1 Operation manual
(English/Italian)
0123
TECHNICAL SPECIFICATIONS 33354 - 33355
ECG Leads:
3-6-12 channel illustration of ECG signals in continuous
recording or 10 sec. recording with interpretation.
Dimension:
296x305,5x92,5 mm Approx 3 kg
Recording channel:
3, 6, 12 channel and 1 channel (60 sec.)
Sensitivity:
2,5 (only 33355) 5, 10, 20, auto (I~aVF: 10,W1~V6: 5) mm/mV
Printing speed:
12,5; 25; 50 mm/s
Filters:
AC (50/60Hz, -20 dB or better) Muscle (25~35Hz, -3 dB or better)
Low pass filter (off, 40 Hz, 100 Hz, 150 Hz)
Display:
2x16 character LCD display (code 33354)
480x272colourTFTLCDdisplay(3and12channelpreview)(code 33355)
LCD display:
Sensitivity, speed filter status, HR, Printing form, rythm lead
LED indicator:
signal quality, power source, battery
Keyboard:
Membrane keyboard, alphanumeric and symbol available
Patient data:
ID, name, age, sex, height, weight
Basic measurement:
Heart rate, PR, QRS, QT/QTc, P-R-T axis
Recorder:
Thermal print head, thermal paper roll
Report papers: width: A4: 210 mm or 8.5",
lenght A4: 300 mm or 11"
Resolution
:
vertical: 8 dots/mm, horizontal: 16 dots/mm
Electrical:
Internal noise: 20μV (p-p) max
Input circuit: floating input
Isolated and defibrillation protected
DC offset voltage: ≥ ± 500 mV
Patient leakage current: < 10μA
Frequency response 0,05~150 Hz
Power:
Power supply: AC or built-in battery (options)
Power requirement: 100-240 Vac, 50/60 Hz, 1.0-0.5 A
Power consumption: 60 W max
Battery capacity:
1 hour of normal use (approx. 100 automatic ECG printouts)
Communication:
PC Connection with RS-232 interface and lan
Safety:
Class I, Type BF
Conformity:
CE, CSA
Made in Korea
0123
Other ECG accessories at page 235-236
29534
Rechargeable battery - for 33354/33355/33357
32950
Thermal paper A4 - for 33354-5-7 - box of 5
33328
ECG cable for 33354-5-7
29519
Trolley for 33354-5-7
33354
33354
GIMA
code
CARDIOGIMA 12 AND 12M ACCESSORIES
33355
+
29519
STANDARD ACCESSORIES
ECG CABLE
COMPATIBLE WITH MOST ECG BRANDS
• 33328 ECG cable - 10 leads
Long lasting, individually tested cable compatible with the fol-
lowing ECG machines:
BIONET:
Cardiocare, Cardiotouch
CARDIOLINE:
E1, E1R, E3, Delta 300, Delta 360 C3.
CARDIETTE
(Elettronica Trentina)
: Autoruler 12/1, Autoruler 12/3,
Excel 103, Excel 106, Astron Comp 1, Astron Comp 3, Astron Comp
6, Start 100 P, Start 100 H, Start 200, Start 200HV, AR600, AR 600
ADV, AR1200, AR1200ADV.
CARDIORAPID CAMINA:
K111, K112, K33, K36, K300 M, K300 P,
K600 P, K600 D, K130 B, K 130 D.
EDAN:
Smart SE-1, SE-3
ESAOTE
P80, P8000
GIMA:
CARDIOGIMA 1M, 3M, 6M, 12, 12M
HP:
Pagewriter 1513, 154B/C, 1514D, 1515A/B, 1517A.
KONTRON
EKG P80
MACQUAIRE
CT100, CT200.
M4 MEDICAL:
M traces
NIHON - KOHDEN
Cardiofax 651, 6581, 8110.
PROGETTI all models:
EPG junior, EPG view, EPG6 view, EPG6 view plus
SCHILLER
AT/1, AT/2, AT/3, AT/4, AT/5, AT/6, AT/10, CS6, CS12, CS100,
CV6, P80.
MADE IN ITALY
33355
33356
MULTI CHANNEL ECG WITH INTERPRETATION ON PAPER
ENHANCED MEMORY FUNCTION
SAVE UP TO 120 PATIENTS’ DATA
SOFTWARE INCLUDED FOR
DATA STORAGE ON PC

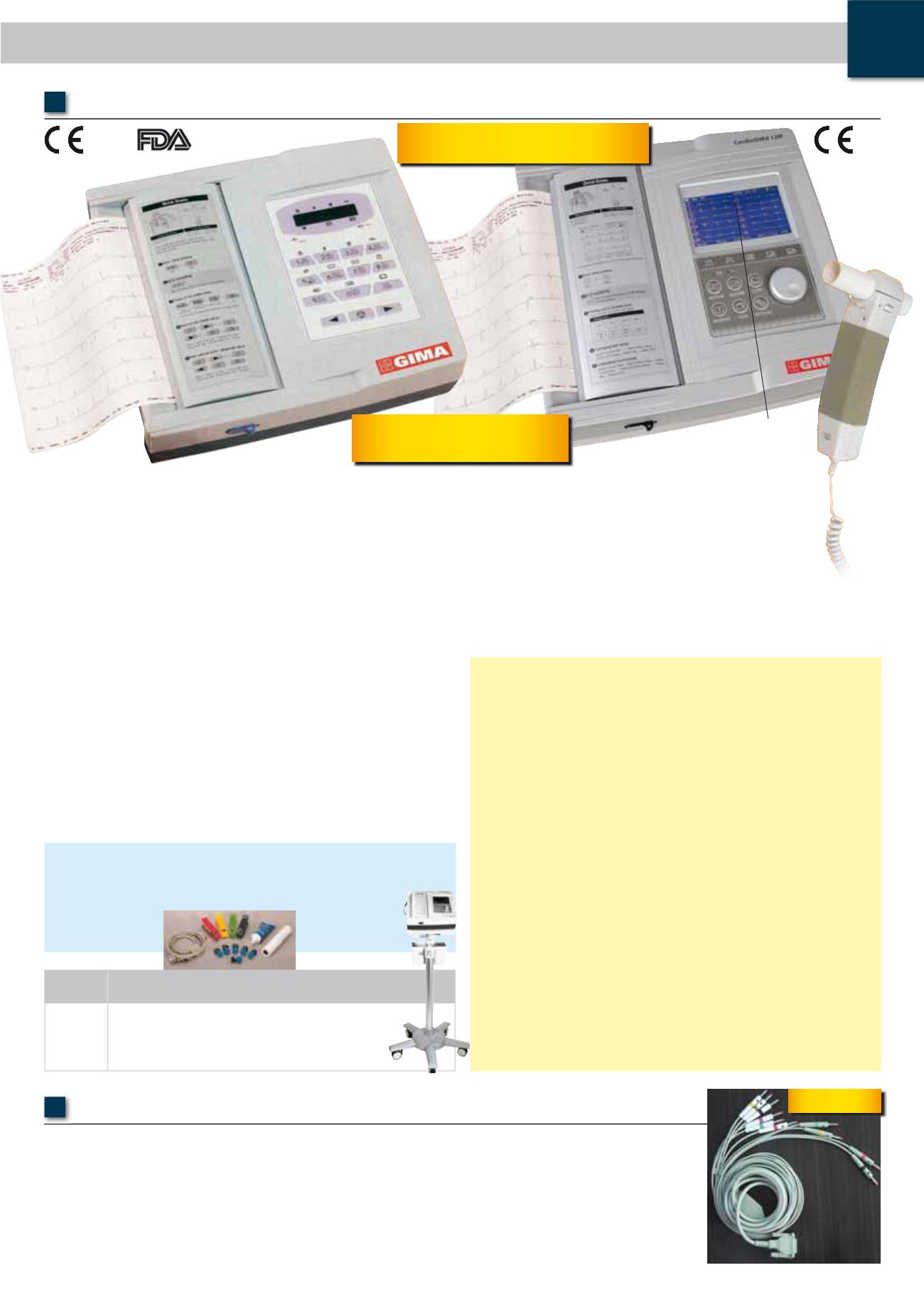

• 33354 CARDIOGIMA 12 ECG - 3-6-12 channel
• 33355 CARDIOGIMA 12 M ECG - 3-6-12 channel with monitor
We propose two models of 12 channel resting ECG recorder which
are the most economically priced without performance compromise.
The simultaneous record of 12 channels has a high diagnostic value
- all the 12 channels are illustrated at the same time. Their design is
maximized for the user’s convenience (A4 size paper, one body type).
Main Features:
- 12 leads simultaneous 10-second resting ECG with interpretation
in only 60 seconds (33355 in
only 5 seconds)
multilanguage, internal
software+printing in English, Spanish, French, German, Russian,
Italian, Chinese, Turkish, Polish, Portuguese, Romanian.
- Wide Paper Printing (A4 size thermal paper, fax paper is OK)
- Combined output of all relevant curves, patient data, date, time
and instrument settings
- Pacemaker and lead fault detect (only 33355)
- PC Connections
Connection to PC (PC interface with RS 232 port Via LAN-software
included) and submit already recorded ECG signal to other specialist
for evaluation (only a modem is needed)
- ECG filing system “ECG Plus”
A fully configured PC-based filing system enables to record ECG
signals, display them in real time, print and record them.
- Rechargeable batteries available (optional
) with 1 hour capacity
in normal use (about 100 ECG printouts)
Wide and clear colour
TFT LCD touch screen
monitor display 12 ch.
preview ECG wave
• 33356 SPIROMETER MODULE - for code 33355
It transforms CARDIOGIMA 12M in a 2 in 1 system: ECG-SPIROMETER.
Spirometry measuring values:
FVC:
FEV 1.0, FEV 1/FVC, FEV 0.2-1.2L, FIVC, FEV 25-75, FEV 75-85%,
PEF, FEF 200-1200 ml, FEF 25%, FEF 50%, FEF 75%, FIF 50%,
PIF, FET 100%, FIVC.
SVC:
SVC, ERV, IRV, TV,EC, IC, BC
MVV:
RR, TV, MVV
Pre and post bronchodilator comparison.
Presentation: flow volume loop, flow time plot, measurement
values table. Complies with ATS standard.
• 33362 DISPOSABLE MOUTHPIECES - box of 100 pcs.
