ECG, MONITORS & ULTRASOUND
230

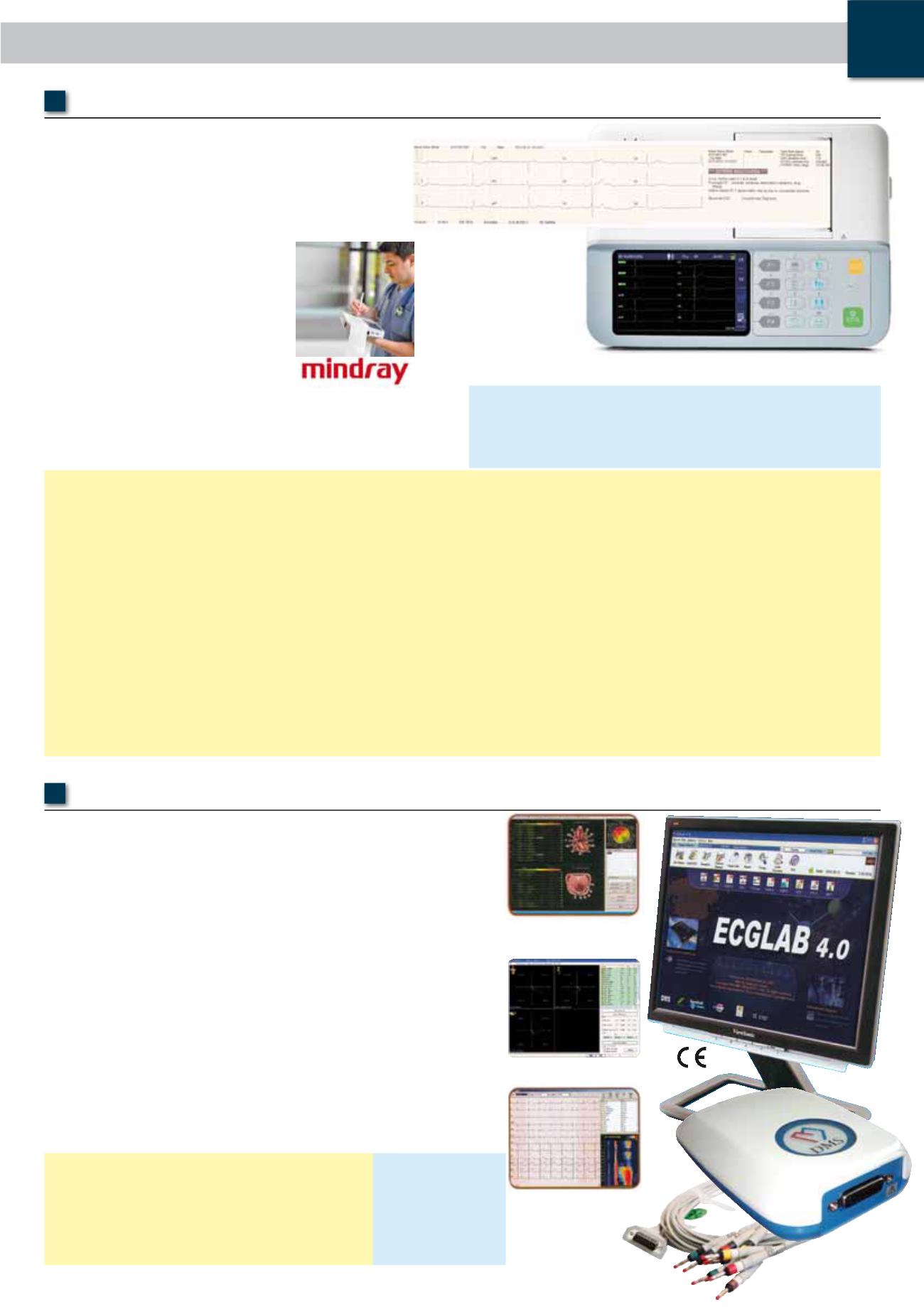

MINDRAY BENEHEART R3 ELECTROCARDIOGRAPH
FCG CAD gram
to locate coronary artery
disease and ischemia
Only 550 g
QT Dispersion
QTD analysis with
chroma map
Above 3 pictures refers
to code 33321
0197
TECHNICAL SPECIFICATIONS
Communication port:
USB - Support HL7, Dicom interface
Size:
120x85x28 mm - 190 g
Power source:
5V DC (from PC USB port)
Patient insulation:
4000 V AC
Defibrillation protection: built-in patient cable
Sample rate:
10240Hz - Sample accuracy: 16 bit
PC minimum requirements: Windows 2000, XP Vista and Windows 7
CPU ≥ 1 GHz - HD ≥ 40 G - RAM ≥ 256 M
• 33320 PC-ECG + ECG LAB SOFTWARE
Innovative PC-ECG device that can be connected to your PC via USB
port. No power cable is required as it is powered through the USB PC
cable. The unit is supplied with a 10 banana plug ECG cable (length 295
cm) and a powerful interpretation software (GB, FR, IT, DE, ES, PT, CN).
Main software features:
- 12 lead resting ECG with interpretation
- vector ECG
- sampling screen colour customization - multi ECG report formats
- standard or thermal paper print, B&W or colour
- auto interpretation On or Off
- measurement table
- tests comparison
- 90s resting ECG full disclosure
- multi hour ECG monitoring with holter analysis
- simple exercise stress test with report
- e-mail, PDF, ASCII, HL7, Dicom, GDT Interfaces
• 33328 ECG CABLE - SPARE
• 33321 PC-ECG+CARDIOLOGY SOFTWARE
Same as code 33320 but with the following specialist functions:
- timed vector ECG
- SAECG (Signal Averaged ECG) ventricular late potentials analysis
- QTd analysis
- hour ECG
- High Frequency ECG (HFECG)
- Frequency Cardiogram (FCECG)
- simple exercise ECG
• 33322 CARDIOLOGY SOFTWARE to upgrade 33320 into 33321
• 33014 ROLL THERMAL PAPER - 80 mm x 20 m - box of 10
• 33016 Z-FOLD THERMAL PAPER - 80x70 mm x 200 sheet - box of 25
PC-ECGWITH INTERPRETATION SOFTWARE AND USB PORT
STANDARD ACCESSORIES
4 limb electrodes
6 chest electrodes
Patient cable 10 leads,
10 electrodes
USB pen driver
CD software
Banana plug
3-VCG analysis
PC not
included
STANDARD ACCESSORIES
Cable with banana plugs, IEC
Limb clamp set of 4
Chest bulb set of 6
Glasgow algorithm
*
in GB, IT, DE
*Available in 13 languages as internal
software by mid 2014
1 roll paper
Rechargeable battery
User manual in: GB, FR, DE, HU, IT,
PL, ES, TR
TECHNICAL SPECIFICATIONS
Power
Power supply:
AC input without external power
adaptor or battery operation
AC power:
100 to 240 VAC ± 10% 60 VA
Battery-type:
rechargeable Lithium ion battery
11.1 V typical, 2,500 mAh
- capacity:
6 hours of continuous operation
without recording or 500 ECGs in
2.5 x 4 format at 25 mm/s and 10
mm/mV
- charge time: 3.5 hours with power off
Processing
ECG analysis
samplig rate:
500 samples/second (sps)
Digital
sampling rate:
1,000 samples/second/channel
Pacer detection
sampling rate:
16,000 samples/second/channel
ECG amplifier:
DC-coupled
Acquisition mode:Pre-acquisition or post-acqui-
sition provide 10 seconds of
instantaneous ECG acquisition
Baseline drift filter: 0.05 Hz, Baseline Drift Removal
(BDR)
AC filter:
50/60 Hz ± 0.3 Hz
ADC:
24 bit
Imput impedance:50 MD at 10 Hz, defibrillator
protected
Patient leakage: < 10 μA
Heart rate meter: 30 to 300 BPM ± 10% or ± 5
BPM, whichever is greater
Sensitivity/gain: 5, 10, 20 mm/mV, Auto
DIsplay
24 bit Colour display
TFT LCD with LED graphics backlit
Resolution:
800x400
Display data:
Patient ID, gender, age, heart rate,
clock, battery power indicator,
waveforms, lead labels, speed,
gain, filter settings, warning
messages, information messages,
network status and USB
Thermal printer: Dot array/Width 80 mm/speed 5,
12.5, 25, 50 mm/s
Software
Measurement and interpretation:
according to University of
Glasgow ECG analysis algorithm
Resting ECG mode: Records and prints 12-lead
resting ECG with 10-second
duration as a standard
Patient information: Patient ID, secondary ID, age,
date of birth, gender, race, me-
dication class and V3 electrode
placement
Internal storage: 800 ECGs in internal memory
ECG Storage format:
PDF format and Mindray storage
format
Multi-language internal software:
GB, FR, IT, ES, DE, PL, PT, TR, RU,
HU, RO, CZ, CN
Report formats
Thermal printer/PDF/A4/letter
Size/Weight:
250x194xh 56 mm/1.2 kg
including battery
The
Glasgow algorithm
is the
first to be based on specific
variables, including age, gender,
race, medication, and class in
order to maximize the accuracy of
the ECG interpretation.
On the report, a headline may
highlight one or several “critical
value warnings” to alert medical
attendants of findings that need
immediate attention.
• 33301 MINDRAY BENEHEART R3 ELECTROCARDIOGRAPH 3 channels
BENEHEART R3 is a lightweight portable cardiograph
for resting ECG diagnosis.
Reliable analysis - Glasgow algorithm
BeneHeart R3 utilizes the University of Glasgow ECG
analysis algorithm, one of the world-leading resting
ECG interpretations with 50 years of history.
Great Portability - only 1.2 kg
The BeneHeart R3 weighs only 1.2 kg
with battery, easy to carry.
5” clear colour display
5” colour screen offers the
highest resolution in industry,
enabling clinicians to observe
real-time waveforms accurately.
Convenient operations
ECG recording is automatically unfolded
on the writing pad at the top of the unit for notes or signature.
Unique recorder - Z-folded or rolling paper
Compatible with both rolling paper and Z-fold paper. You can
easily switch between these two styles of paper without
dismantling the pressure lever.
