ECG, MONITORS & ULTRASOUND
242
0197
For probes purchased separately from ultrasound it is necessary to supply the serial number of the device
• 33950 CHISON Q5 COLOURDOPPLER with 2 probe connector,
15" high resolution monitor, 320 GB hardisk, 2 USB port,
LAN port, Video, TV, VGA out, without probe.
Portable digital colourdoppler with high professional features:
Imaging mode:
- Instant Triplex, Duplex, Quadplex
- B, 2B, 4B, B/M, M
- Power Doppler / Directional PD
- CFM
- Trapezoidal
- PW mode
- Chroma B/PW
Image processing technology:
- Multi-beam former technology
- I-image
™
: image optimization software
- THI
- Speckle reduction algorithm (SRA)
- Multiple compound imaging (MCI)
Operating voltage: 110-240 V, 50-60 Hz. Manual: GB, IT, on request FR.
• 33952 CHISON Q9 COLOURDOPPLER
Same as Q5 but with TDI quantitative cardiac dialysis, THI on
all probes, double phase digital beam, DPDBF, IMT calculation,
needle enhancement, 160 GB hard disk.
Suitable for cardiac use.
• 33951 CHISON Q9+4D COLOURDOPPLER
Same as Q9 but with 4D real time imaging.
• 33901 TROLLEY FOR Q5, Q8, Q9
• 33943 I-IMAGE for improving image quality
• 33920 SONOTOUCH
™
10 - B/W
• 33921 SONOTOUCH
™
20 - colour
Lightweight, portable, small size,
touchscreen ultrasound devices.
Main features:
- display mode: B, B/B, 4B, B/M, M and Colour mode (only
33921). In the M or B/M mode, 4 steps sweep speeds.
- multi-step display magnification, depth enhancement
- setting adjustment of total gain, and 8 segments of TGC
slides for selection and adjustment
- multifocal firing focus, edge enhancement, frame averaging,
compound
- image freezing and storage function, built-in 4 GB (33920),
16 GB (33921) high-speed memory and external USB memory
disk can be connected to the system for mass storage through
USB port. Stored images can be retrieved for analysis.
- 256 frames of real-time images can be stored in Cine-memory
- probe scanning direction can be changed and the image can
be reversed in left/right, up/down direction
- measurements of distance, area, circumference, volume, OB
etc. Automatic calculation of OB and cardiology. Direct display
of gestation age, expected date of child delivery and direct
measure of heart rate
- real-time clock displays date and time automatically
- display of body marks with corresponding probe position
indication
- annotation function in image area of the screen. Special
annotation terms for different exam-mode can be added
according to user's requirement
- battery operated, battery life up to 2.5 hours

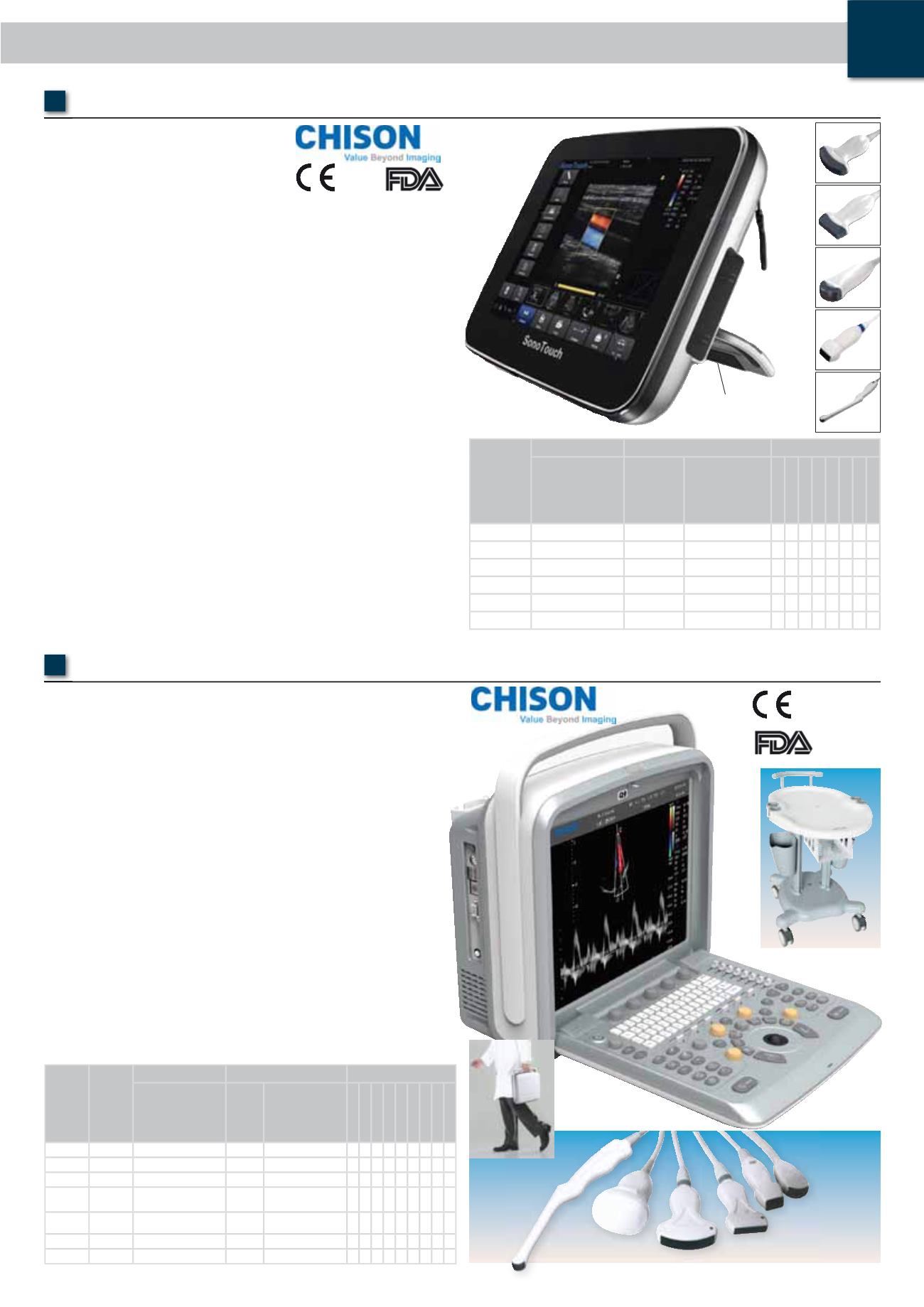

CHISON Q5, Q9 AND Q9 4D PORTABLE COLOURDOPPLER
SONOTOUCH
™
10.4" - TOUCH ULTRASOUND
B/W OR COLOUR
Button free screen and
waterproof front
panel
Refine the
image with
easy, touch
driven TGG,
focus and
depth
Select your
applications
from visual
icons
Take measure with
your fingers, no trackball
(accuracy 1 mm)
Adjustable angle stand
converts into carrying
handle
33956
33959
33954
33955
33957
33958
0197
33922
33923
33924
33925
33926
GIMA
code
for Q5
GIMA
code
for Q9
PROBES FREQUENCY (MHz)
O
Main application
Scanning
Method
Main
freq.
Probe
band
width
ABDOMINAL
OB/GYN
UROLOGY
SMALL PARTS
ENDOCAVITY
CARDIOLOGY
PROCTOLOGY
PEDIATRICS
VESSELS
33954 -
CONVEX 3.5
2.5 - 5.3
O O O
- 33953
CONVEX 3.5
2.0 - 6.8
O O O
33955 33955
LINEAR
7.5 5.0 - 12.0
O
O
33956 33956
TRANSVAGINAL
(MICRO-CONVEX) 6.0 4.0 - 12.0
O O O
- 33957
CARDIAC
(PHASED ARRAY) 3.0
2.0 - 5.4
O
33958 33958
PEDIATRIC 5.0
3.5 - 9.3
O
- 33959
4D CONVEX 4.0
2 - 6.8
O O
33901
33952
GIMA
code
PROBES
FREQUENCY (MHz)
O
Main application
Scanning
Method
Main
freq.
Probe
band
width
ABDOMINAL
OB/GYN
UROLOGY
CARDIOLOGY
VASCULAR
SMALL PARTS
MSK
PAEDIATRIC
33922
CONVEX
3.5
2.5 - 5.0
O O O
33923
LINEAR
7.5
5.0 - 10.0
O O O
33924
MICRO-CONVEX
3.0
2.5 - 5.0
O O O
33925
PHASED ARRAY
3.0
2.5 - 4.4
O O
33926
TRANSVAGINAL
6.0
4.0 - 7.5
O O
33927
MICRO-CONVEX
6.0
4.0 - 8.0
O
