ECG, MONITORS & ULTRASOUND
247
GIMA
code
ACCESSORIES FOR BM1, BM3, BM5, BM7
33738 NIBP
Extension cable, 3 m (necessary for all cuffs)
33735
Adult cuff - 49x15 cm - need ext. cable 33738
33736
Child cuff - 35x11 cm - need ext. cable 33738
32848
Obese cuff 62x75.5 - need ext. cable 33738
33737
Kit of 3 neonatal cuffs - needs cable 33738
32810
Mini cuff 16x5 cm - needs 33738+33739
32811
Mini cuff 23x5 cm - needs 33738+33739
33739
Metal connector (necessary for mini cuff)
33740 Temp
Exacon temperature sensor 2.75 m, skin type
Compatible with Drager MM15114, MM15822,
GE 21733601, Philips HP21059B, Nihon Kohden P242A,
Datascope 0206-02-0003
33741
Exacon temperature sensor 2.75 m, rectal
33743 Paper
Thermal paper 57.5 mm, 38 Ø
33742 Battery
Ni-MH12Vbattery - up to january 2006
**
- BM3, BM3 Plus
33715
Ni-MH 12V battery - Since january 2006
**
- BM3, BM3 Plus
33717
Li-ion battery - Since Sept. 2007
**
- new BM3, Plus, BM5
33798
Li-ion battery 11.1 V - 6 cell for EtCO
2
- for 33782 only
33710
Li-ion battery 11.1 V for BM1
33709
Li-ion ba ttery 11.1 V for BM7
33770 Adapter
AC adapter for BM3, BM5, BM7
**
Date is approximative. Please select battery according to picture and specifications
33738
33742
33735
33740
33741
32811
33736
32810
33715
33717
33737

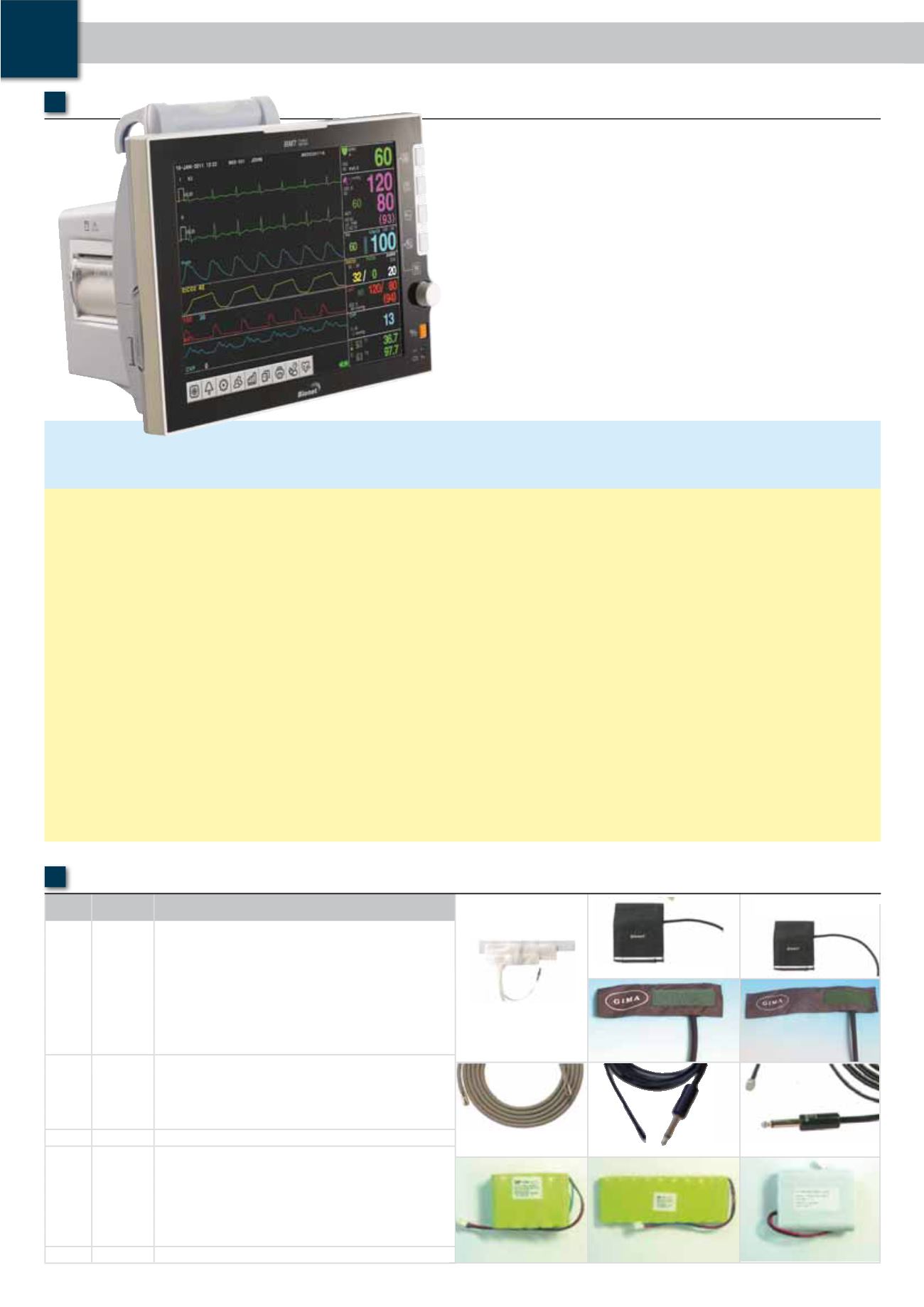

• 33774 BM7 MONITOR 12.1“ touch screen LCD display - 7 channels
Premium patient monitor for intensive care.
Superior features:
- touch screen operation display
- individual sweep speed setting for each parameter
- 168 full hours of trend data storage
- 4-split large multiple display modes
- oxy/CRG
- drug calculation
- screen freeze ON-OFF
- ST level analysis histogram
High performances:
- ECG, SpO
2
, NIBP, Respiration, 2 Temp, 2 IBP
- Sidestream EtCO
2
- optional
- 13 Arrhythmia analysis modes
- high performance
Suntech NIBP
- Li-ion battery with longer life time (1.5 hrs continuous operation)
- possibility to connect to BM central monitoring system see
page 245
• 33709 Li-ion BATTERY 11.1 V - spare
Same accessories and probes as BM5 monitors, see page 246,248.
5-lead patient Cable (MECA5 (AHA), MACE5 (IEC))
Electrodes - box of 10
NIBP extension tube (3m)
Reusable Adult Cuff (25-35 cm)
Reusable Pediatric Cuff
SpO
2
extension cable (2m)
Reusable Adult SpO
2
probe
DC adapter (18 VDC, 2.5A)
Li-ion 11.1 V battery
Thermal printer
2 paper roll
User manual: GB, IT
MONITOR
Display, Resolution
12.1“ color TFT. 800x600 pixels
Dimension
322x250x224.8 mm
Weight
Approx. 4.5 kg
Trace
6 waveforms: 2xECG, SpO
2
, RR or
EtCO
2
, 2xIBP
Sweep speed: 6.25, 12.5, 25, 50 mm/sec
Indicators
Categorized alarms (3 priority levels)
Visual alarm lamp handle and heart beat tone
QRS beep & SpO
2
pulse beep
SpO
2
pitch tone
Battery status, external Power LED
Interfaces
Touch screen, rotary knob
Connectors
DC input connector: 18 VDC, 2.5 A
Defibrillator Sync. Output:
- Signal level: 0 to 5 V pulse
- Pulse width: 100 ± 10 ms
LAN dIgital output for
transferring data
External VGA monitor connection
DC output 5VDC. 1A Max
Battery
Rechargeable Li-ion battery,
1.5 hours continuous operation
Thermal Printer
Speed: 25, 50 mm/sec,
paper width: 58 mm
Data Storage
168 hours trends, 20 cases of
10 sec alarm waveform
USB memory storage
Internal language (selectable)
GB, FR, IT, ES, DE,
CZ, PL, PT, RO, BG, HU, TR, RU, CN, KR
ECG
Leads type
3-lead, 5-lead
Lead selection
3-lead: I, II, III
5 lead: I, II, III, aVR, aVL, aVF, V
ECG waveform
3-lead: 1 channel
5-lead: 2/7 channel
Heart rate range
Adult: 15-300 bpm
Neonate/pediatric: 15-350 bpm
Heart rate accuracy
±1 bpm or ±1%wichever is greater
Sweep speed
6.25, 12.5, 25, 50 mm/sec
Filter
Diagnosis: 0.05~120 Hz
Monitoring: 0.5~40 Hz
Moderate: 0.5~25 Hz
Maximum: 5~25 Hz
S-T segment detection range
-2.0 to 2.0 mV
Arrhythmia analysis
ASYSTOLE, VTACH, VFIB,
BIGEMINY, ACCVENT, COUPLET,
IRREGULAR, PAUSE, PVC, RONT,
TRIGMINY, VBRADY, SHORTRUN
Pacemaker detection mode
Indicator on waveform display (user selectable)
Protection
Against electrosurgical interference
and defibrillation
RESPIRATION
Method
Thoracic impedance
Channel selection
RA-LA or RA-LL
Measurement range
5-120 breath per minute
Accuracy
±1 breath per minute
Apnea alarm
Yes
SpO
2
range
0 to 100%; (70 to 100% ±2% digits)
Pulse rate range
0 to 254 bpm ±2 bpm
NIBP SUNTECH
Method
Oscillometry
Operation
Mode manual / Automatic / Continuous
Pressure measurement range
0-300 mmHg
Safety pressure:
Adult: 300 mmHg
Neonate: 150 mmHg
Blood pressure:
Adult pressure: 20 to 220 mmHg
Measurement range:
Pulse rate: 30-220 bpm
Pediatric pressure: 20-160mmHg
Pulse rate: 30-220 bpm
Neonate pressure: 20-130mmHg
Pulse rate: 30-220 bpm
Accuracy:
The static pressure measurement is
within ±3 mmHg
Meets ANSI/AAMI SP 10 2002
TEMPERATURE
Measurement range:
10 to 45°C (59 to 113°F) ±0.1°C
Compatibility
YSI SERIES 400 temperature probes
IBP
Channels
2
Measurement range
: -50 to 300 mmHg
Accuracy
<100 mmHg ±1 mmHg
>-100 mmHg ±1% of reading
Pulse rate measurement range
0 to 300 bpm
Zero balancing
Range: ±200 mmHg
Accuracy: ±1 mmHg
Drift: ±1 mmHg of over 24 hours
Transducer sensitivity:
5 μV/mmHg
Pulse rate measurement range:
0 to 300 bpm
TECHNICAL SPECIFICATIONS
BM1, BM3, BM5, BM7 MONITOR ACCESSORIES
BM7 PREMIUM PATIENT MONITOR FOR INTENSIVE CARE
STANDARD ACCESSORIES
