Arrhytmia analysis: VTAG, VFIB,
ASYSTOLIC Pacemaker detection
indicated on the ECG waveform display
33777
BM5MULTIPARAMETERMONITOR
WITH EXTENDIBLE PARAMETERS
TECHNICAL SPECIFICATIONS FOR MONITOR 33777 - 33778 - 33779 - 33780 - 33781
GENERAL
Dimensions/Weight: 270x185xh 250 mm/4 kg
Trace:
6 waveform (ECGx2, SpO
2
, RR or EtCO
2
IBPx2)
Indicators:
categorized alarms (3 priority levels),
visual alarm lamp handle,
heart rate, SpO
2
pulse pitch tone
battery status, external power LED
Thermal printer: 25, 50 mm/sec (paper width 58 mm)
Battery:
Li-ion (2 hours operating time)
Interfaces:
LAN digital output for transferring date
Nurse call system connection
defibrillator sync. output
DC input connector: 12 to 18 VDC, 2.5A max
Operating voltage: 100-240 V, 50-60 Hz
SpO
2
% Saturation Range:
0% to 100%
Pulse Rate Range:
0 to 254 bpm
SpO
2
Accuracy:
70% to 100% ±2 digits
Pulse Rate Accuracy:
± 2 bpm
ECG
Lead tipe:
3-lead, 5-lead (33777-33780), 10-lead(33779)
Lead selection: 3-lead: I, II, III (33777/79/80/81)
5-lead: I, II, III aVR, aVL, aVF, V (33780/1 only)
10-lead: I, II, III aVR, aVL, aVF, V1, V2, V3, V4, V5, V6
(33779 only)
ECG Waveforms:
3-lead 1 channel (33777/79/80/81 only)
5-lead: 3/7 channels (33777/79/80/81 only)
10-lead: 3/12 channels (33779 only)
Heart rate range:
Adult: 30-300 bpm
Neonate/pediatric: 30-350 bpm
Heart rate accuracy:
± 1 bpm or ± 1%, wichever is greater
Sweep speed:
6.25, 12.5, 25, 50 mm/sec.
Filter:
Diagnostic mode: 0,67-150 Hz
Monitoring mode 0,67-40 Hz
Surgical mode: 5-25 Hz
S-T Segment detection range: - 2.0 to 2.0 mV
Arrhythmia analysis:
Asystole, Vtach, Vfib, Bigeminy,
Accvent Couplet, Irregular, Pause, Pvc,
Ront, Trigeminy, Vbrady, Shortrun
Diagnostic analysis:
120 kinds (33779 only)
Pacemaker detection mode: Indicator on waveform display
(user selectable)
Protecion: against electrosurgical interference and defibrillation
NIBP
Technique:
Oscillometric with linear deflation
Measurement Modes:
Manual-Automatic-Continuous
Measurement range:
Adult pressure: 20 to 260 mmHg
Pediatric pressure: 20 to 230 mmHg
Neonate pressure: 20 to 120 mmHg
Cuff pressure display:
0 to 300 mmHg
B.P. measurement range: Systolic: 40 to 270 mmHg
Mean: 20 to 230 mmHg
Diastolic: 10 to 210 mmHg
Adjustable Cuff Inflation Pressure
Respirations
Range:
5 to 120 breaths/min
Accuracy:
±1 breath/min
Apnea alarm:
yes
Temperature Unit
Range:
15° to 45°C (59°F to 113°F)
Accuracy:
± 0.1°C
Compatible with:
YSI Series 400 Temperature Probes
IBP
Channels:
2
Measuring range:
-50 to 300 mmHg
Measuring accuracy:
± 1 mmHg (<100mmHg)
± 1 % of reading(>100 mmHg)
Pulseratecountingrange: 0 to 300 beats/min
Zero balancing:
range ± 200 mmHg
accuracy ± 1 mmHg
drift ± 1 mmHg over 24 hours
Transducer sensitivity:
5μV/V mmHg
EtCO
2
Measurement mode:
Sidestream
Measurement range:
0~150 mmHg, 0 to 19%
Respiration range:
2~150 bpm
Accuracy:
± 2 mmHg, 0~40 mmHg
± 5%, 41~70 mmHg
± 8%, 71~100 mmHg
± 10%, 101~150 mmHg
Respiration accuracy:
± 1 breath per minute
Exacon temperature sensor 2.75 m - skin type
Exacon temperature sensor 2.75 m - rectal
EtCO
2
Sidestream module for 33777/8/9
Intubated Filter Line H - adult - box of 10 for 33796
Intubated Filter Line H - infant - box of 10 for 33796
Non intubated CO
2
nasal cannula - adult - box of 10 for 33796
Non intubated CO
2
nasal cannula - pediatric - box of 10 for 33796
Non intubated CO
2
+O
2
nasal cannula - adult - box of 10 for 33796
Non intubated CO
2
+O
2
nasal cannula - pediatric - box of 10 for 33796
Li-ion battery 11.1 V for EtCO
2
module 33782 only
IBP Kit - disposable - single
IBP Kit - reusable (not autoclavable) - single
IBP Kit - reusable (not autoclavable) - double
33740
33741
33796
33790
33791
33792
33793
33794
33795
33798
33787
33788
33789
Visible alarm
lamp handle

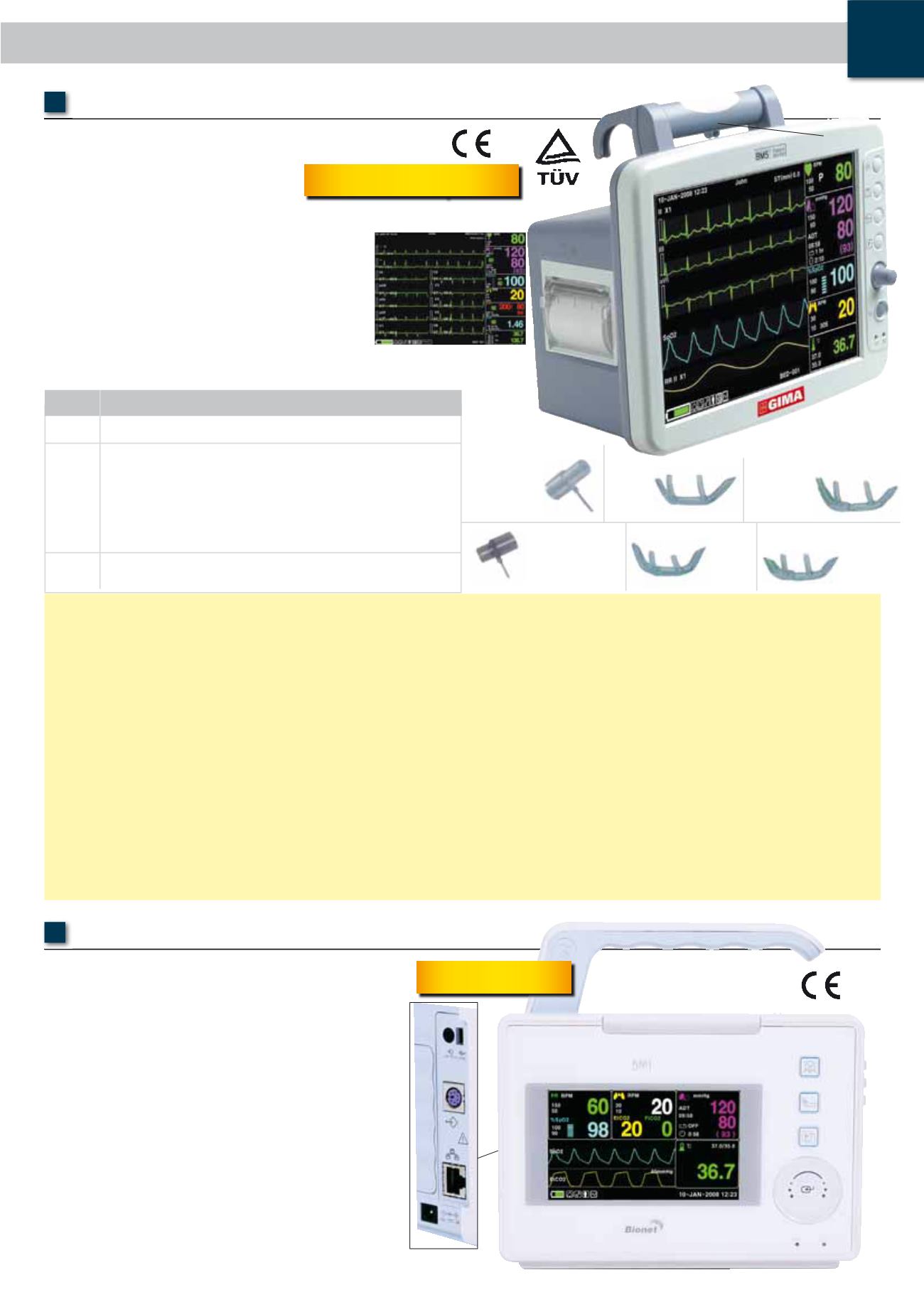

• 33777 GIMA BM5 MONITOR - 10.4” TFT display - 7 ch ECG
• 33779 GIMA BM5 VET MONITOR - 10.4” TFT display
- high-performance ECG analysis
ST level PVC count display
13 kinds of Arrhythmia analysis
7 channels
- 10.4" colour TFT screen with 6 waveforms
- visible alarm lamp handle
- SpO
2
technology with very low-perfusion detection
- SpO
2
pitch tone
- 58mm built-in chart recorder
- graphical and tabular trends of printing
- LAN or wireless LAN
- 120 full hours trend data stored
- direct DC input for vehicle transport
- Li-ion battery with long life time
- connection to central monitoring system
- selectable software language (GB,DE, FR, IT, PT, PL, RO,HU, ES, CZ, BG, RU, TR, CN).
Standard accessories as BM3 monitor, page 245. Other accessories page 247-248.
12 Channel display
0123
ISO9001
33791
Airway adapter set
with dehumidification
tubing for intubated
Infants
33793
CO
2
nasal
cannula -
pediatric
33795
CO
2
+O
2
nasal
cannula -
pediatric
33792
CO
2
nasal
cannula -
adult
33794
CO
2
+O
2
nasal
cannula - adult
33790
Airway adapter set
with dehumidifi-
cation tubing for
intubated adult
Suitable also for VET (dog horse)
ECG+SPO
2
+NIBP+RESP+ 2 TEMP,
2 IBP + optional ETCO
2
MODULE
GIMA
code
TEMPERATURE, EtCO
2
AND IBP KIT
Suitable also for VET (cat, puppy)
• 33714 GIMA BM1 MONITOR SpO
2
+NIBP
optional Temp. and EtCO
2
Professional multiparameter monitor in compact size:
- only 60 mm (2.36 inch) thick and 1.0 kg (2.2lb)
- easy mounting to an IV pole
- 4.5 hours battery operation (rechargeable li-ion)
- top handle and rear grip
- monitoring mode and spot check mode
- 4.3" color TFT monitor for clear view 480x272 pixels
- touch key and wheel navigation
- external VGA output for large LCD monitor (option)
- saves 128 hours trend and 400 cases
- multilanguage selectable software (GB, FR, IT, ES, DE,
PL, PT, RO, BG, HU, CZ, RU, TR, CN, KR)
- highly advanced CO
2
monitoring technology
- plug and play EtCO
2
module
Use same accessories of BM line
SpO
2
, TEMP, EtCO
2
, NIBP technical specifications
same as BM5.
• 33710 Li-Ion RECHARGEABLE BATTERY - spare
SpO
2
+ NIBP
optional TEMP and EtCO
2
BM1: SLIM AND LIGHT MONITOR WITH STRONG MOBILITY
Supplied with NIBP adult cuff (25-35 cm)
with 3 m extension hose, SpO
2
adult finger
probe with extension cable (2 m) DC adap-
ter (15 VDC, 2.0 A) pole mount bracker,
shoulder strap, rechargeable battery.
Size: 190x125x60 mm
Weight: 1 kg
