Direct connection of
external monitor
Easy mounting
with bed-rail hook
STANDARD ACCESSORIES
33718
33719
3 lead patient cable (ECG)
•
• vet
Disposable electrodes: 10 pcs
•
•
NIBP tubing - 3m
•
•
Reusable adult cuff 25-35 cm
•
Reusable child cuff
•
Set of 3 veterinary cuff
•
SpO
2
sensor - reusable
•
• vet
SpO
2
sensor extension cable 2 m
•
•
Thermal printer 58 mm
•
•
DC adaptor (18 VDC, 2.5A)
•
•
Battery
•
•
User manual: English, Italian
•
•
TECHNICAL SPECIFICATIONS
GENERAL
Display:
7" colour TFT (800x480)
Dimensions/Weight:
238x250xh 163 mm/3.1 kg
Indicators:
Up to 4 waves (2xECG, SpO
2
, Respiration),
categorized alarms (3 priority levels), external
power LED, heart rate tone, battery status
Thermal printer:
25, 50 mm/sec (paper width 58 mm)
Battery:
internal battery: Li-ion
operating time: 2 hours (fully charged)
Interfaces:
LAN digital output for transferring data
DC input connector: 18 VDC, 2.5 A max
Operating voltage:
100-240 V, 50-60 Hz
ECG
Leads:
3 leads, 5 leads(OPTlON)
Heart Rate Range:
30 to 300 bpm
Heart Rate Accuracy:
± 3 bpm
ST level:
yes
PVC Count display:
yes
Bandwidth:
0.5 Hz to 40Hz
Display Sweep Speeds:
25mm/sec
ECG Size (Sensitivity):
0.5, 1, 2, 4 mV/cm
Pacemaker Detection Mode: Indicator on waveform display
CMRR:
>90 dB at 50 or 60Hz
Input Dynamic Range:
± 5 mVAC, ± 300 mVDC
Defibrillator Discharge:
<4 s
Arrhythmia analysis:
VTAC/VFIB/ ASYSTOLIC
Lead-Off Detection with display indicator
SpO
2
% Saturation Range: 0% to 100%
Pulse Rate Range:
0 to 254 bpm
SpO2 Accuracy:
70% to 100% ±2 digits
Pulse Rate Accuracy: ± 2 bpm
NIBP
Technique:
Oscillometric
Measurement Modes: Manual: Single measurement
Auto: Automatic intervals of
1, 2, 3, 4, 5, 10, 15, 20, 30 min. and 1, 2, 4, 8 hours
Stat: Continuous measurement for 5 minutes
Cuff pressure display: 50 to 300 mmHg
B.P. measurement range:
Systolic: 0 to 260 mmHg
Mean Arterial Pressure:
30 to 220 mmHg
Diastolic: 20 to 200 mmHg
Adjustable Cuff Inflation Pressure
Respirations
Range:
5 to 120 breaths/min
Accuracy:
± 3 breaths/min
Temperature Unit
Range:
15° to 45°C (59°F to 113°F)
Accuracy:
± 0.1°C
Compatible with:
YSI Series 400 Temperature Probes
33745
PATIENT CENTRAL SYSTEM (up to 31 monitors)
It allows the user to monitor and extract the exact
status of several patients simultaneously at a place.
Convenient bidirectional comunication allows you
to admit new patient information, set alarms at
either central station or patient monitor.
• 33745 WIRE CENTRAL SYSTEM
(PC, monitor and software)
• 33746 WIRE CONNECTION KIT
One for any monitor to be connected.
• 33758 WIRELESS CENTRAL SYSTEM
(PC, monitor and software)
• 33759 WIRELESS CONNECTION KIT
One for any monitor to be connected.
Printing sample
58 mm built-in printer for
both real time and trend date
(Speeds: 25-50 mm/sec)
Bed-rail
hook
Ergonomic
handle
Pacemaker
detection
inidicated on
ECG dispay
0123
Angle of plate
adjustable
Height of cart
is adjustable
Moving cart increase flexibility
around the ward or department.
33725
COLOUR MULTIPARAMETER MONITORS
Battery status indicator
- operating time 2 h
- charging time 4h
Display modes
Trend display mode
Large parameter display mode
ST analysis display mode

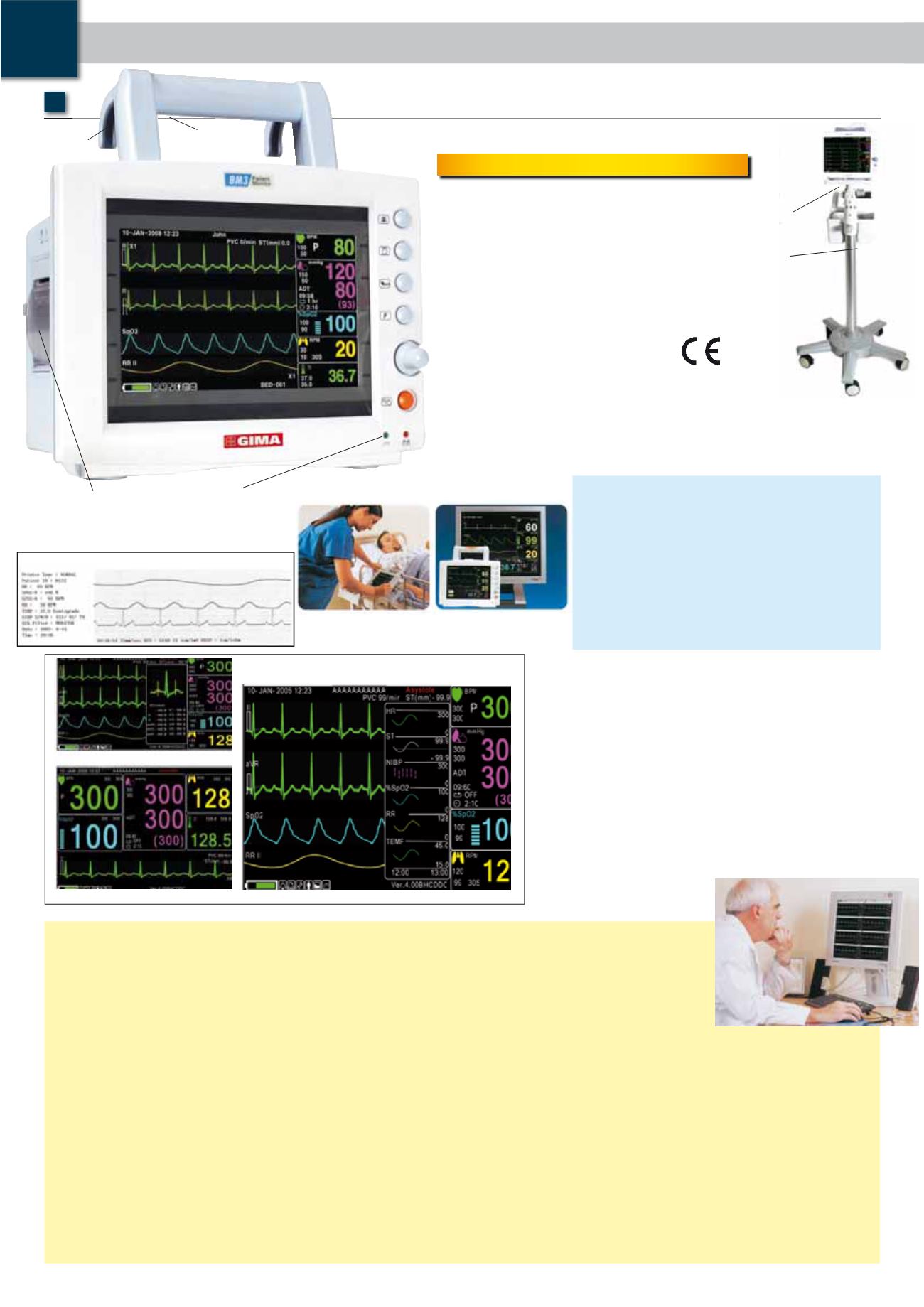

• 33718 GIMA BM3 MONITOR (7” - 800X480 - TFT display)
• 33719 GIMA BM3 VET MONITOR - VETERINARY
ECG+SpO
2
+NIBP+RESP+TEMPERATURE
GIMA monitors are configured with
- Heart/pulse rate
- ST analysis, PVC count display
- 3 lead ECG (5 lead optional)
- Non-invasive blood pressure (NIBP)
- Nellcor Pulse oximetry (SpO
2
) - pitch tone
- Impedance respiration
- Temperature (sensor is optional)
- Pacemaker detection indicated on ECG dispay
- Battery and direct DC (18 VDC) input (not for recharge)
- Built-in printer (58 mm)
- 120 hours memory trend capacity
- Remote alarm function
- 20 alarm memory
- wired or wireless LAN and HL7
- Internal softwareselectable inGB,DE, FR; IT, PT, PL, RO,HU, ES, CZ, BG, RU, TR, CN
- User manual: English (on request: Italian, Spanish, French, German).
