STANDARD ACCESSORIES
1 ECG cable
1 NIBP cuff
1 SpO
2
probe
1 Body surface temperature transducer
1 AC power Adapter
1 Power cable
1 Li-ion battery
10 Disposable electrodes
User manual
TECHNICAL SPECIFICATIONS
NIBP Monitoring
Measuring method:
Automatic measurement by oscillating method
Cuff inflation time:
<10 seconds (typical adult cuff)
Initial cuff inflation pressure: Adult mode: <180mmHg infant mode: <120mmHg
Overpressure protection limit: Adult mode: 300mmHg Infant mode: 240 mmHg
Measuring range
Systolic pressure:
Adult: 40-225 mmHg
Infant: 40-200 mmHg
Diastolic pressure:
Adult: 20-215 mmHg
Infant: 20-165 mmHg
Mean arterial pressure:
Adult: 10-195 mmHg
Infant: 10-150 mmHg
Measurement accuracy: Systolic ±10% Diastolic ±10% MAP ±10%
Measurement mode:
Manual, Auto, STAT
Automatic measuring:
1~240min
Intervals:
interval tolerance: <10s
TEMP Monitoring
Measuring range, accuracy: 25.0°C~45.0°C, ±0.2°C
SpO
2
& Pulse Rate Monitoring
Transducer:
dual-wave length LED
SpO
2
measuring range:
35%~100%
Low perfusion capability: 0.4%~5%
SpO
2
display accuracy:
70%~100% ±3%
PR measuring range:
30bpm~250bpm
PR measuring accuracy:
±2bpm
ECG Monitoring
Heart rate measurement: ±0.4mVp~±5mVp
Heart rate display range: 20bpm~250bpm
Display accuracy*:
±1% or ± 2 bpm, whichever is greater
Heart rate alarm delay time: ≤10s
Sensitivity selection:
Auto, ×1/2, ×1, ×2, ×4
tolerance: ≤5%
Sweeping speed:
12.5 mm/s, 25mm/s, 50mm/s
tolerance: ≤10%
ECG noise level:
≤30μVP-P
ECG input loop current:
≤0.1μA
Input impedance:
≥5MΩ
Common-mode rejection ratio: ≥89dB
Time constant:
Monitoring mode≥0.3s
Diagnostic mode≥3.2s
Frequency response:
Monitoring mode: 0.5Hz~25Hz
Diagnostic mode: 0.05Hz~75Hz
RESP Monitoring
Monitoring range, accuracy: 0rpm~120rpm, ±5% or 2rpm, whichever is greater
RESP alarm range:
0bpm~100bpm
Alarm tolerance: ±10%
Other Technical Specifications
Power supply:
100~250Vac, 50/60Hz
Power consumption:
<80 VA
Display mode:
7 inches TFT color LCD
Alarming mode:
Audible-visual alarm
Networking port:
LCD serial/Net port
TECHNICAL SPECIFICATIONS
ECG
ECG waveform gain:
0.5 mm/mV, 1.0 mm/mV, 2.0 mm/mV
Scanning speed:
7.5 mm/s, 15 mm/s
Heart rate and alarm range: Adult:
30~250 bpm (beats/min)
Resolution:
1 bpm (times/minute)
Sensitivity:
>200 uV (Peak-to-Peak value)
Trigger level threshold:
200 nV (Lead II)
Input impedance:
>5 M Ω
Common-mode rejection ratio:
≥90 dB
Leakage current:
<10 uA
Input signal range:
±5 mV
ECG abnormal types:
Tachycardia, Bradycardia, VPC, Bigeminal rhythm,
Tirgeminal rhythm, RonT, VTAC, Escape Beat and
Sinus arrest
Frequency response:
Filter:
0.67 - 40 Hz
Guardianship:
0.05 - 40 Hz
Detection:
0.05 - 100 Hz
Calibration signal:
6 mm/mV
ST segment measurement: Measured range: -2.0 mV - +2.0 mV
Precise:
-0.8mV - +0.8mV; ±0.02mV or ±10%
Renew period:
10 s
Non Invasive Blood Pressure (NIBP)
Measurement:
Oscillometric method
Measuring range:
30 ~ 280 mmHg ±5 mmHg or ±5%
Overvollage protection:
Yes
Alarm:
Systolic / diastolic alarm error of ± 2 mmHg
Atrial premature function
Measuring wrist Week:
135 ~ 215 mm
Oxygen saturation (SpO
2
)
Measuring range:
40 - 99% ±2% (90-99%), ±4% (70-89%)
Alarm range:
50 - 99% ±2 (30-80 bpm), ±4 (80-150 bpm) ±5 (150-240 bpm)
Pulse rate
Measuring range:
30-240 bpm
35135
Adult SpO
2
probe - spare
35136
Pediatric SpO
2
probe
35137
ECG cable - spare
35138
Li-ion battery -spare
35140
NIBP cuff - arm circumf. 10-19 cm - pediatric
35142
NIBP cuff - arm circumf. 18-26 cm - pediatric XL
35139
NIBP cuff - arm circumf. 25-35 cm - adult - spare
35143
NIBP cuff - arm circumf. 33-47 cm - adult XL
GIMA
code

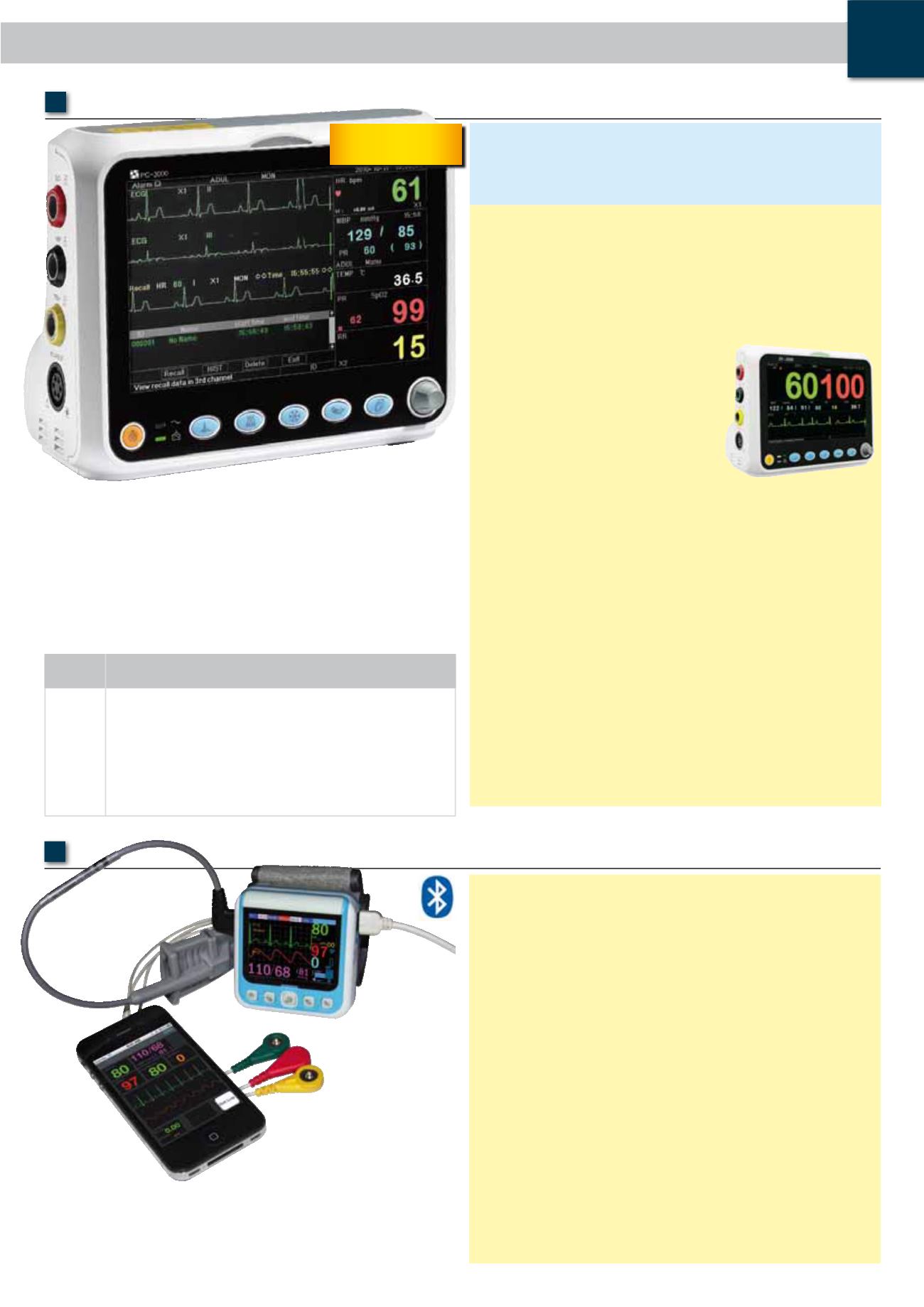

• 35134 PC 3000 MULTI-PARAMETER PATIENT MONITOR
- 7'' high resolution colour TFT display, 5-channel waveform display
- standard parameters: ECG, RESP, SpO
2
, NIBP, 2-TEMP, PR;
Arrhythmia analysis and ST segment analysis
- up to 800 groups parameter data & 24-hour ECG waveform
storage and recall
- 480-hour graphic and tabular trends for all parameters
- 7-channel ECG simultaneous waveforms display
- protection against interference from defibrillator, electrosurgical knife
- adult / Pediatric measurement modes
- visual and audible alarms; networking capability
• 35152 WRIST PATIENT MONITOR - available June 2014
Pocket size multiparameter monitor for ECG, heart rate,
respiration, blood pressure, oxygen saturation monitoring and
recording. Can be used in hospitals, clinics and at home. Low
power consumption. Bluetooth 4.0 technology allows data transfer
to a free App available at App store. Do not support Android.
ACCESSORIES - SPARES
*Accuracy defined as-mean-square root value of deviation according to ISO 9919
Wide option of screen
views available
Phone
not included
WRIST PATIENT MONITOR WITH BLUETOOTH
Dimension: 7x7x2.6 cm
(wrist strap not included)
Net/Gross weight:
130 g / 500 g
35152
Supplied with 3 leads
ECG cable, blood pres-
sure cuff (for circumfe-
rence 18-26 cm) rubber
oxygen probe (length
33 cm), battery charger
5V/1A, lithium battery
3.7V 1,000 mAh (for 8
hours continuous work).
ECG, RESP, SpO
2
,
NIBP, 2-TEMP, PR
PC-3000 MULTI-PARAMETER PATIENT MONITOR
