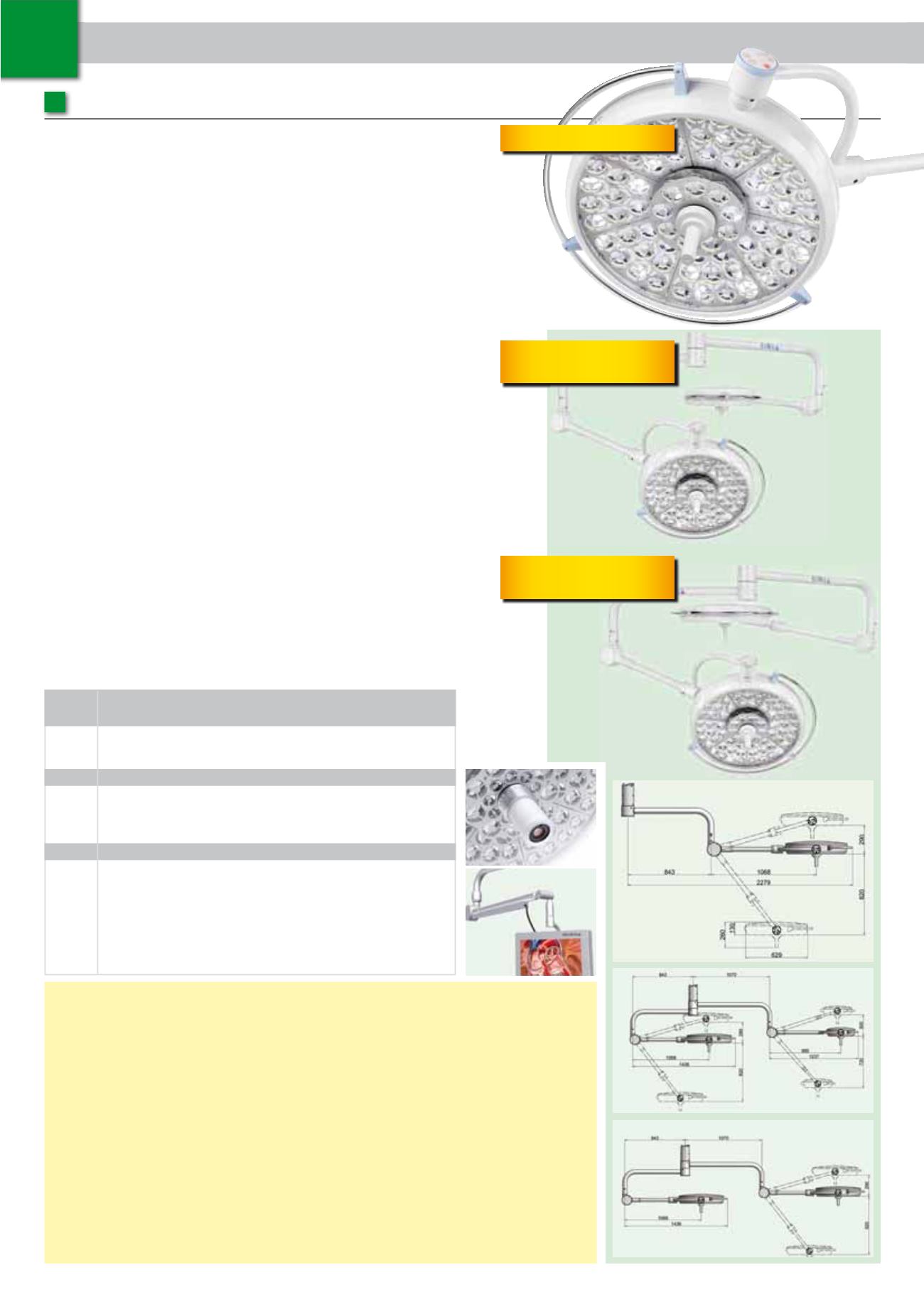

MEDICAL LIGHTS
169
63N+30N 290,000 LUX
(160,000+130,000 LUX)
63N+63N 320,000 LUX
(160,000+160,000 LUX)
PENTALED 63N
Pentaled 63N is a high-tech product designed to guarantee excellent
performance levels. PENTALED 63N has 72 elliptical reflectors split
into 8 modules, each containing 9 LEDs. The modules are mechanically
focused by rotating the sterilizable handle. The multiplicity of the luminous
sources and the elliptical geometry of the parabolas studied to reflect in
the depth the light beams generated by the LEDs, grant scialytic light for a
threedimensional illumination without shadows.
Comfortable use
Thanks to the principle of indirect light, the lamp oriented towards different
positions does not dazzle the surgeon and the assistants.
The size of the lit field is adjusted mechanically through handle according to
the light required by the surgeon.
Superior lighting features
Membrane keyboard activates the following functions:
• selection of the colour temperature 5,000°K and 4,500°K
• adjustment of the light intensity up to 160 Klx
• on/off
• endoled light with colour selection (comfortable light for
endoscopy intervention)
The colour temperature of 5,000°K stimulates the surgeons' concentration,
does not strain their sight, reproduces the colour of the tissues faithfully and
increases the definition of the edges.
Reliable and long lasting performances
The modular construction of the electronic board that feeds the LEDs
guarantees continuous light, even in the unlikely event that a LED or board
component should fail. The lighting body is protected by tempered glass screen,
covered by a special film avoiding any fallen down splinters in case of break.
Easy manoeuvrability
The reduced dimensions and the light reflector provide extreme
manoeuvrability and stability. Smooth 360° rotation. The extremely light
structure, the aluminium treated bar attached to the upper front
of the cupola, the ultra-thin dome (only 13 cm) allow simple movements.
Battery group, TVCC camera, monitor holding camera on request
Every lamp can be supplied with an emergency battery group with
automatic charger (hours autonomy: 2.5 (49200), 2.5 (49201), 2 (49202)),
TVCC camera or monitor holding arm.
Full certification
Complies with European Directives 93/42/EEC
and 2007/47/EC ‘Class I - Medical Device’ CE marking. Made in Italy.
TECHNICAL SPECIFICATIONS
63N
30N
Performance Light intensity at 1 m distance (Ec)
klx
160
130
Colour temperature: double selection
°K
4,500/5,000
4,500/5,000
Colour rendering index (CRI)
Ra
96
96
Light field diameter adjustable from/to
cm
21-42
18-22
Total radiated energy Ee where
the illumination reaches max level
Number of LED
72
30
Diameter and focus adjustment
manual
manual
Depth of illumination IEC 60601-0-41 L1+L2 at 60% cm
46
55
Depth of illumination IEC 60601-0-41 L1+L2 at 20% cm
115
108
Control of illuminance
%
25-100
25-100
Endo LED light intensity min-max
klx
5-20
9-25
Electrical data Operating power (VAC)
V
100-240
100-240
Operating power Vdc
V
24
24
Electrical absorbed power
VA
145
70
Frequency
Hz
50/60
50/60
Average LED life
h
50,000
50,000
General data Colour
RAL
9003
9003
Minimum height of the room (standard
*
)
cm
280
280
Outer reflector diameter
cm
63
40
Useful lighting surface
cm
2
1710
712
Weight
kg
45
35
PENTALED 63N - 160,000 LUX
PENTALED 63N+30N double - 290,000 LUX
PENTALED 63N+63N double - 320,000 LUX
Autoclavable handle - spare
Monitor holding arm - stand alone
IR remote control - single lamps
IR remote control - double lamp
Battery group with automatic charger for 63N
Battery group with automatic charger for 63N+30N
Battery group with automatic charger for 63N+63N
STD TVCC camera for 63N - including lamp setup
HD TVCC camera for 63N - including lamp setup
Monitor holding arm - integrated with lamp
Special structure for low ceilings (<2.8 m) - single lamp
Special structure for low ceilings (<2.8 m) - double lamp
49200
49201
49202
30738
49205
49206
49207
49210
49211
49212
49213
49214
49215
49218
49219
GIMA
code
PENTALED 63N THEATRE LIGHTS - CEILING
ACCESSORIES
ACCESSORIES TO BE ORDERED WITH LIGHT
W/m
2
399
263
63N 160,000 LUX
PENTALED 63N THEATRE LIGHTS
Monitor holding
Arm
Monitor not
included
*
Possibility to adapt to lower ceiling on request with surcharge
49202
49201
49205
49201
49202
49200
TVCC camera
49213-4
